Breakdown of Included Items

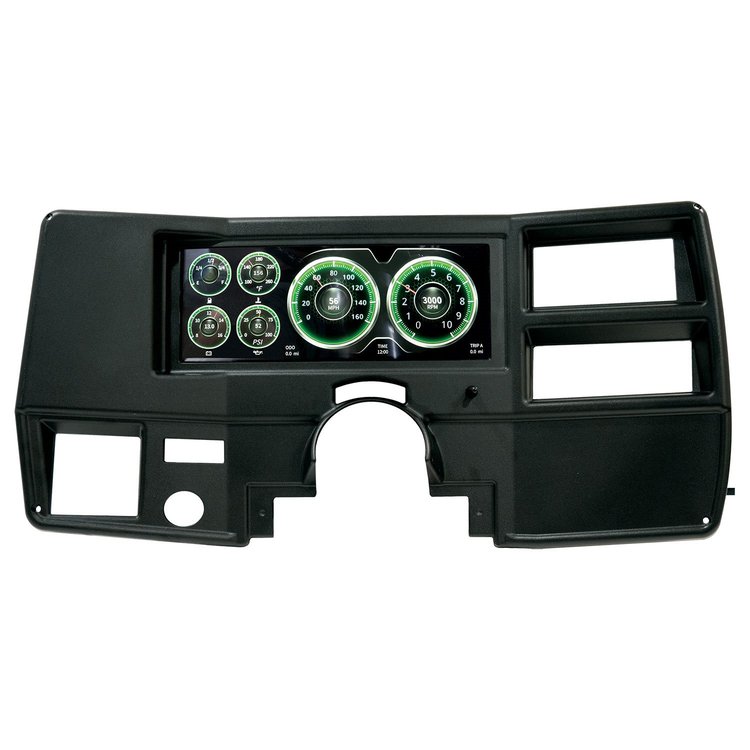

Auto Meter 7004 Features:

• Requires no cutting, drilling, or modification to factory pieces
• Monitors fuel level, oil pressure, water temperature, voltage, tachometer, and speedometer
• High beam and turn signal indicators with user-selectable warning light
• Visual or audible alarms for low fuel level oil pressure, water temperature, and voltage
• Includes wiring harness and sending units for water temperature and oil pressure

Display Features:

• 12.300 in. LCD screen with 3 user-selectable gauge display layouts
• The speedometer calibrates to OEM or aftermarket vehicle speed sensor
• Adjustable RPM range from 8,000-10,000 and displays imperial or metric measurements
• The tachometer is capable of calibrating with 0.5, 1 ,1.5, 2, 2.5, 3, 4, 5, and 6 pulses (compatible with 1-12 cylinder applications)
• Odometer with 2 trip meters
• User-selectable fuel level resistance range of 0-90, 240/33, 73/10 linear and non-linear 16/158, 40/250, 0/30
• Adjustable time with 12-hour and 24-hour formats
• Adjustable brightness for day and night
