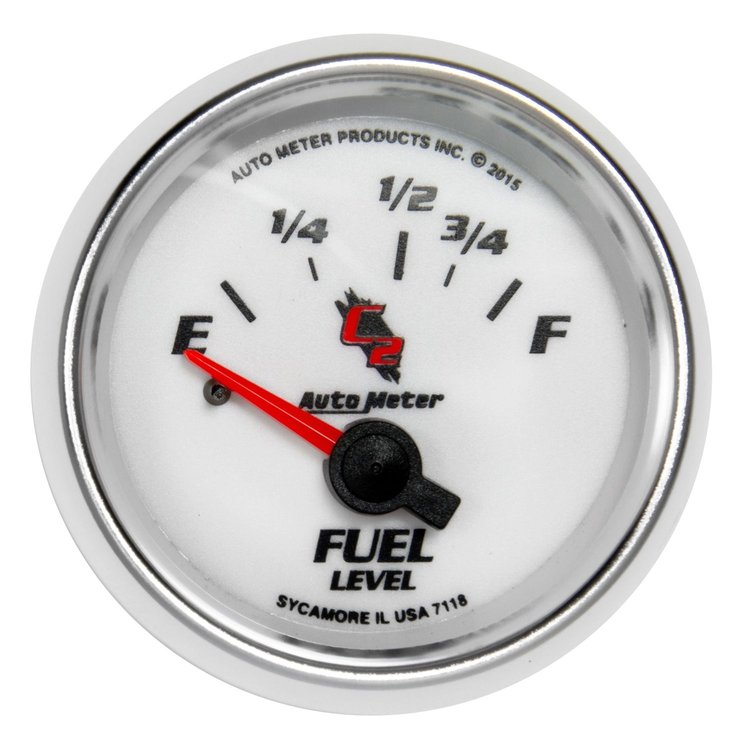

C2 Fuel Level Gauge 2-1/16" Electrical (Short Sweep)

Name: C2 Fuel Level Gauge 2-1/16" Electrical (Short Sweep)
Brand: AUTO METER
SKU: 105-7118
Price: 83.08 USD
Availability: InStock

Size :

^$83⁰⁸

Ships on 09/09/2026

Lowest Price Guarantee

Fuel Level Gauges

2-1/16" Electrical (Short Sweep)
16-158 ohms
Hi-Def Through-The-Dial Blue LED Lighting w/LED Lit Pointer
Works w/Most 1989 And Later Ford
Features Air-Core Meter Movement
Incl. Gauge Mounting Hardware And Instructions
Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
Works with 16E/158F ohm senders, including AutoMeter 3262
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes mounting hardware and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Electrical or mechanical in four diameters, these gauges have white faces with black accents (compared to Cobalt Gauges with black faces/white accents), illuminated red pointers, anodized bezels, and blue LED backlighting for visibility and style.

Lit Gauge Simulation
