Made in USA

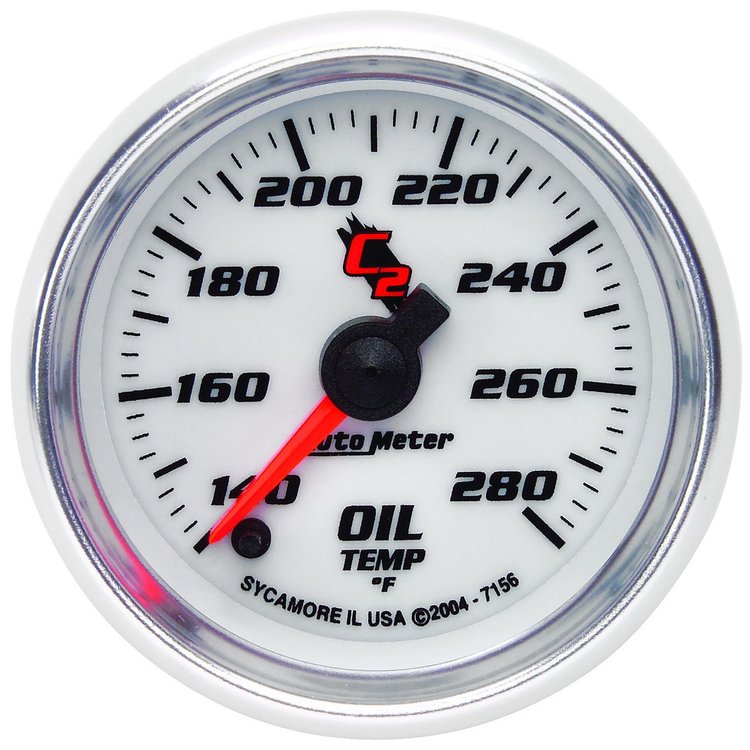

C2 Oil Temperature Gauge 2-1/16" Electrical (Full Sweep)
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-7156

C2 Oil Temperature Gauge 2-1/16" Electrical (Full Sweep)

$17899
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Oil Temperature Gauges
    C2 Oil Temperature Gauge
  • 2-1/16" Electrical (Full Sweep)
  • 140°-280°F

    1/8" NPT sender and 3/8" and 1/2" NPT fittings included
  • Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
  • Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Using AutoMeter's advanced 1/8" NPT two wire temperature transducer, you can be assured of the most accurate possible readings of the life blood of your engine. The advanced Digital Stepper Motor Drive keeps needle movement smooth and precise. A direct plug in wiring harness is included for ease of installation.

Part TypeGauge
BrandAUTO METER
Package Height4.6
Package Width4.6
Package Length5.0
Weight0.65 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
MeasurementUS
Temperature140-280 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Luminescent blue
Bezel ColorBright Anodized
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter C2
Gauge Number ColorBlack
Gauge Range140-280 degrees F
Lighting TypeLED
Gauge TypeOil Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 1/16 diameter
TypeElectrical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorBlue
Vendor Part Number7156
Package Qty1
Package TypeEA
