Vehicle Info NeededAUTO METERPART NUMBER: 105-7175

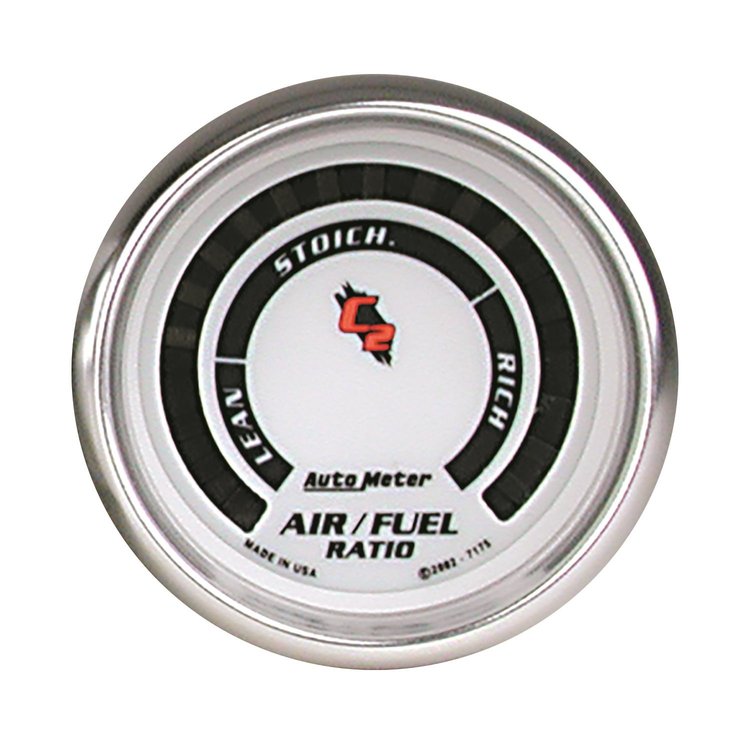

C2 Air/Fuel Gauge 2-1/16" Electrical (Full Sweep)
Size :
$12374
Ships on 09/08/2026
Lowest Price GuaranteeAir/Fuel Gauges
- C2 Air/Fuel Gauge
- 2-1/16" Electrical (Full Sweep)
- Lean to Rich
Gauge works with most OE and aftermarket oxygen sensors. If sensor is needed, use #105-2244, which includes sensor, weather pack harness, and weld fitting. - Compatible with factory narrowband O2 sensors (0-1V)
- May require model 2244 if the vehicle does not have a factory narrowband primary O2 sensor
- Features LED radial bar graph display (gauge does not have provision for backlight)
- Will not work with wideband O2 sensors (0-5V) - please check your specific application before purchase
Running too lean while enjoying spirited driving in your vehicle is one of the leading causes of expensive engine damage. AutoMeter's Narrowband Air/Fuel Gauges pair with older Oxygen Sensors to warn of lean burn conditions under heavy engine load. Connects directly to the factory O2 sensor on many applications, or uses the AutoMeter 2244 Narrowband O2 sensor. Not compatible with 5 wire air/fuel sensors.
Electrical or mechanical in four diameters, these gauges have white faces with black accents (compared to Cobalt Gauges with black faces/white accents), illuminated red pointers, anodized bezels, and blue LED backlighting for visibility and style.
Show More
| Lit Gauge Simulation |
 |
Part TypeGauge
Product LineAuto Meter C2 Gauges
BrandAUTO METER
Package Height4.5
Package Width4.7
Package Length4.9
Weight0.45 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Luminescent blue
Bezel ColorBright Anodized
ShapeRound
SweepBar graph
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishSilver
Gauge Size (In.)2 1/16 diameter
Pointer ColorN/A
Gauge StyleAuto Meter C2
Gauge Number ColorGreen/Yellow/Red
Gauge SeriesDigital
Gauge RangeLean-rich
Oem ReplacementNo
Lighting TypeLED Segments
Part FitmentUniversal
Lighting ColorRed/Yellow/Green
Gauge TypeAir/Fuel ratio
Sending UnitElectrical
Vendor Part Number7175
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
