Vehicle Info NeededAUTO METERPART NUMBER: 105-7313

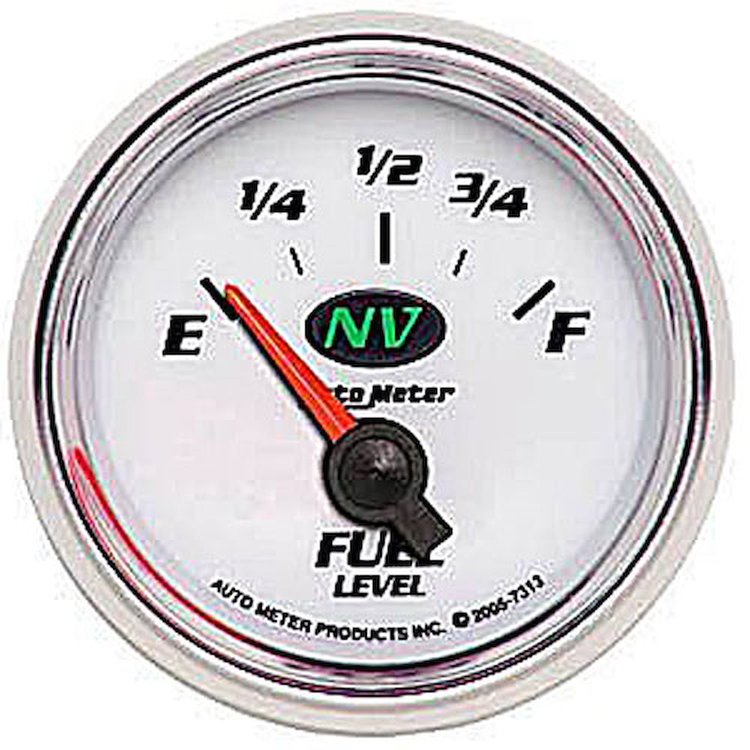

NV Fuel Level Gauge 2-1/16" , electrical short sweep
Size :
$8599
Ships on 09/09/2026
Lowest Price GuaranteeFuel Level Gauges
- NV Fuel Level Gauge
- 2-1/16'', electrical short sweep
- 0-90 ohms
For most 1965-97 GM vehicles (will not operate on some 1998-Up vehicles with 40-250 ohm sender) - Modern green LED through-the-dial lighting provides clear visibility during nighttime use
- Works with most 1965 to 1997 Chevrolet/GM senders
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes mounting hardware and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings
One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.
- Electrical or mechanical and in three diameters, these "NV" gauges have crisp white faces during the day that transform to a fierce green at night. They are easy to read and perfect for street rods, muscle cars, trucks, and sport compacts. A shockproof strap and mounting base are included.
| Lit Gauge Simulation |
 |
Part TypeGauge
Product LineAuto Meter NV Gauges
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length4.7
Weight0.49 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Luminescent green
Bezel ColorBright Anodized
Sweep180 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishSilver
Gauge StyleAuto Meter NV
Gauge Number ColorBlack
Gauge RangeEmpty-full
Sender Ohm Range0 ohms empty, 90 ohms full
Lighting TypeLED
Gauge TypeFuel Level
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorGreen
Vendor Part Number7313
Package Qty1
Package TypeEA
