NV Transmission Temperature Gauge 2-1/16" , electrical short sweep
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-7349

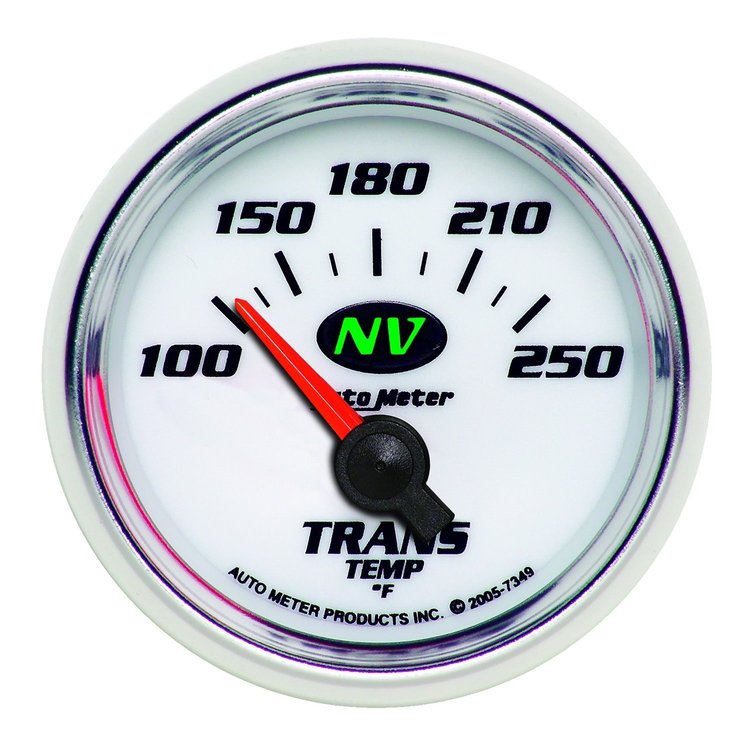

NV Transmission Temperature Gauge 2-1/16" , electrical short sweep

$9199
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Transmission Temperature Gauges
    NV Transmission Temperature Gauge
  • 2-1/16'', electrical short sweep
  • 100°-250° F

    1/8' NPT electric sender and 3/8' and 1/2' NPT adapters included
  • Modern green LED through-the-dial lighting provides clear visibility during nighttime use
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
  • AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8" NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.8
Package Length4.9
Weight0.68 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Luminescent green
Bezel ColorBright Anodized
Sweep180 degree sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishSilver
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter NV
Gauge Number ColorBlack
Gauge SeriesAnalog
Gauge Range100-250 degrees F
Oem ReplacementNo
Lighting TypeLED
Part FitmentUniversal
Lighting ColorGreen
Gauge TypeTransmission temperature
Sending UnitElectrical
Vendor Part Number7349
Package Qty1
Package TypeEA
