Made in USA

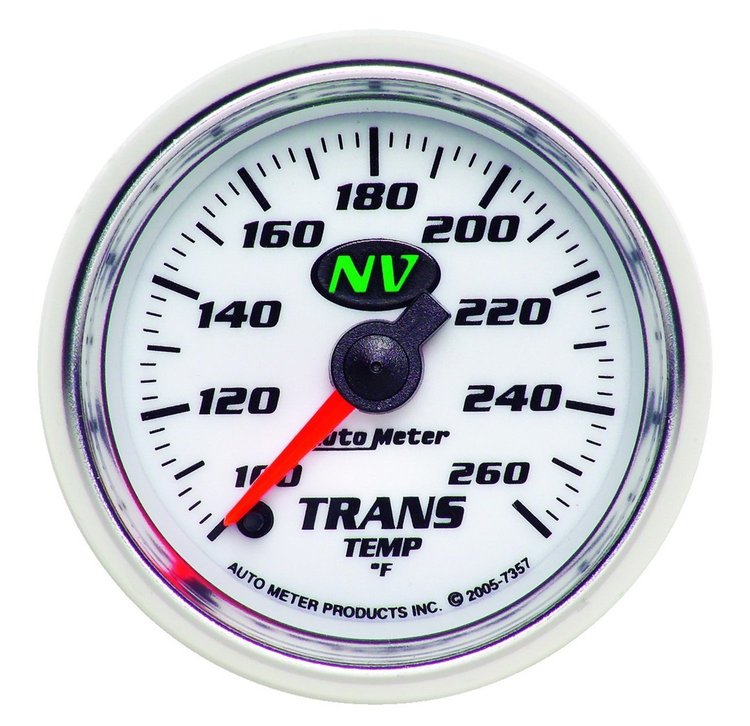

NV Transmission Temperature Gauge 2-1/16" , electrical full sweep
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-7357

NV Transmission Temperature Gauge 2-1/16" , electrical full sweep

$17588
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Transmission Temperature Gauges
    NV Transmission Temperature Gauge
  • 2-1/16'', electrical full sweep
  • 100°-260° F

    1/8' NPT electric sender, 3/8" and 1/2' NPT adapters/fittings, and 8' wiring harness included
  • Modern green LED through-the-dial lighting provides clear visibility during nighttime use
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
  • Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.8
Package Length4.9
Weight0.71 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Luminescent green
Bezel ColorBright Anodized
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishSilver
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter NV
Gauge Number ColorBlack
Gauge SeriesAnalog
Gauge Range100-260 degrees F
Oem ReplacementNo
Lighting TypeLED
Part FitmentUniversal
Lighting ColorGreen
Gauge TypeTransmission temperature
Sending UnitElectrical
Vendor Part Number7357
Package Qty1
Package TypeEA
