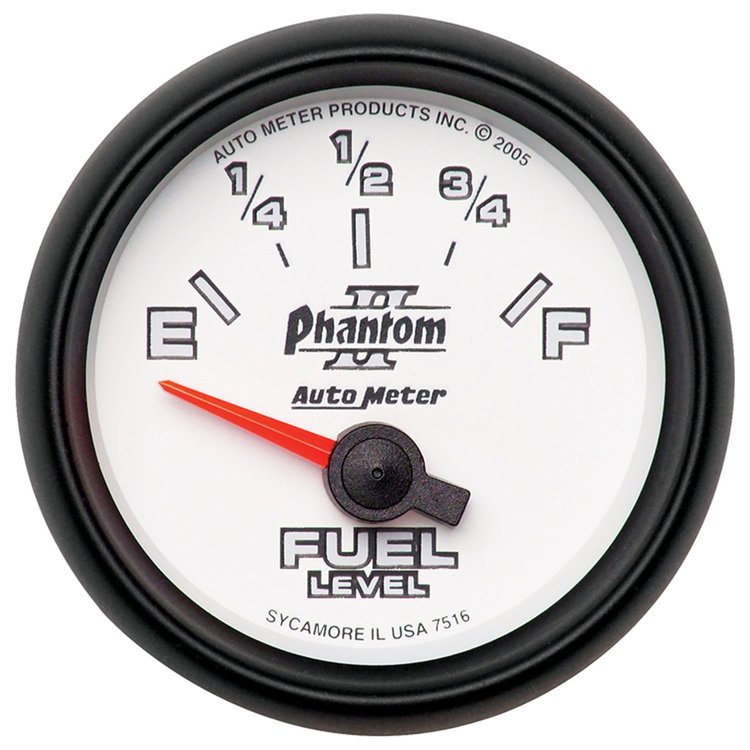

Phantom II Fuel Level Gauge 2-1/16" electrical (short sweep)

Name: Phantom II Fuel Level Gauge 2-1/16" electrical (short sweep)
Brand: AUTO METER
SKU: 105-7516
Price: 88.99 USD
Availability: InStock

^$88⁹⁹

1 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

Fuel Level Gauges

2-1/16" electrical (short sweep)
Universal
240-33 ohms
Intense Through The Dial White LED Lighting
Brilliant LED Lit Pointer For Maximum Visibility
Reverse Lighting Effect
1 Year Limited Warranty
Modern white LED through-the-dial lighting provides clear visibility during nighttime use
Works with 240E/33F ohm senders, including AutoMeter 3262
12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
Gauge kit includes mounting hardware and detailed instructions for installation
AutoMeter's race proven air-core electric instruments provide quick and accurate readings

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60"s to mid 90"s), 0-30 ohm (early GM), 73-10 ohm (pre 90"s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Part TypeGauge

BrandAUTO METER

Package Height4.6

Package Width4.8

Package Length4.9

Weight0.4 PG

Part CategoryPerformance Parts

Sending Unit IncludedNo

Gauge Size (Mm)52.40 diameter

Gauge Face ColorWhite/Black

Bezel ColorBlack

Sweep90 degree sweep
