Vehicle Info NeededAUTO METERPART NUMBER: 105-7537

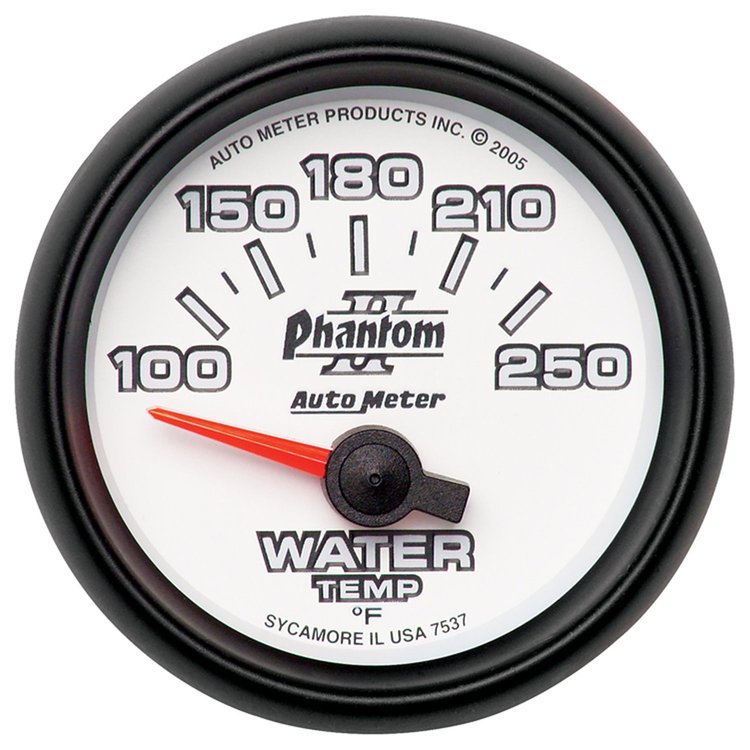

Phantom II Water Temperature Gauge 2-1/16" electrical (short sweep)
$9799
Ships on 09/08/2026
Lowest Price GuaranteeWater Temperature Gauges
- Phantom II Water Temperature Gauge
- 2-1/16" electrical (short sweep)
- 100°-250° F
includes 1/8" npt sending unit, 3/8" & 1/2" npt adapter fittings - Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
- AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
A high water temp can be detrimental to an engine. Heat is the enemy of performance and reliability. Keep tabs on your temps with the most trusted water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included for a simple installation on any application.
Part TypeGauge
BrandAUTO METER
Package Height4.6
Package Width4.7
Package Length4.8
Weight0.6 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Temperature100-250 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Black
Bezel ColorBlack
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom II
Gauge Number ColorWhite with black outline
Gauge Range100-250 degrees F
Lighting TypeLED
Gauge TypeWater Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number7537
Package Qty1
Package TypeEA
