Vehicle Info NeededAUTO METERPART NUMBER: 105-7555

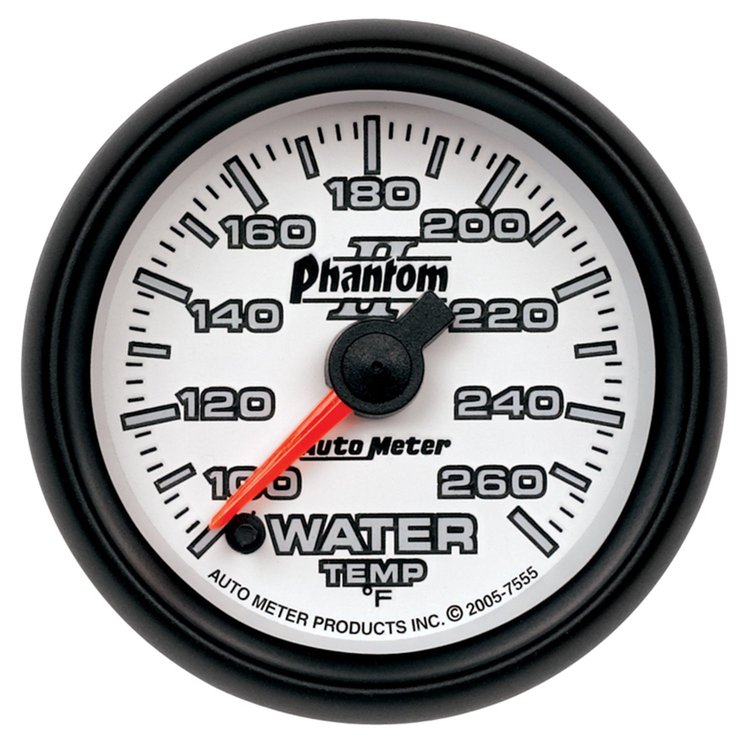

Phantom II Water Temperature Gauge 2-1/16" electrical (full sweep)
$20199
Ships on 09/09/2026
Lowest Price GuaranteeWater Temperature Gauges
- Phantom II Water Temperature Gauge
- 2-1/16" electrical (full sweep)
- 100°-260° F
includes 1/8" npt sending unit, 3/8" & 1/2" npt fittings and 8' wiring harness - Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height4.6
Package Width4.7
Package Length5.0
Weight0.7 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Temperature100-260 F
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite/Black
Bezel ColorBlack
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom II
Gauge Number ColorWhite with black outline
Gauge Range100-260 degrees F
Lighting TypeLED
Gauge TypeWater Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number7555
Package Qty1
Package TypeEA
