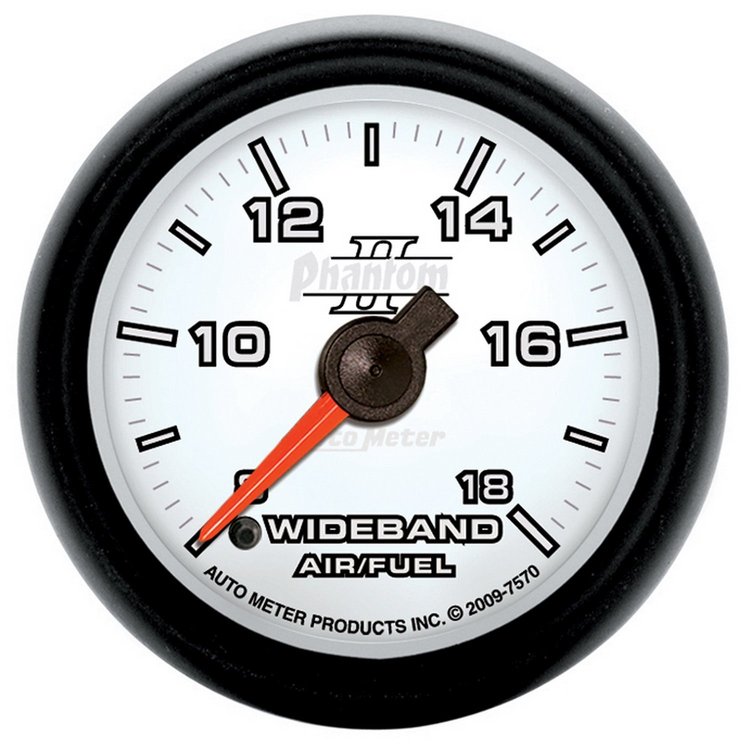

Phantom II Wideband Gauge 2-1/16" electrical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-7570

Phantom II Wideband Gauge 2-1/16" electrical

$23699
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Wideband Gauges
    Phantom II Wideband Gauge
  • 2-1/16" electrical
  • 8:1-18:1 AFR

  • Intense Through The Dial White LED Lighting
  • Brilliant LED Lit Pointer For Maximum Visibility
  • Reverse Lighting Effect
  • 1 Year Limited Warranty
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • Gauge kit includes custom tuned .1 AFR Resolution Bosch LSU4.2 Sensor, 8ft. wiring harness, 304 stainless steel weld-in bung, mounting hardware, and detailed instructions for installation
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
  • Display range of 8:1 to 18:1
  • Suitable for use with gasoline powered engines
  • 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
  • Mirroring the functions of AutoMeter's Street Wideband, the Digital Stepper Motor Wideband provides the most important functions necessary to make sure you're extracting the most power possible, safely. An analog needle display integrates seamlessly with other gauges and easily illustrates rate of change as well as the actual value. Our advanced auto calibration system automatically calibrates your gauge on every startup to assure you of the highest degree of accuracy over the entire lifespan of your sensor (no free air calibration is ever necessary). Designed for gasoline applications, this wideband gauge provides the same degree of accuracy and response as the Pro version, but at a reduced cost. Data logging output is included for one wire or two wire systems. Our specially designed O2 sensor and wiring harness are included for ease of installation.

Part TypeGauge
BrandAUTO METER
Package Height5.4
Package Width5.5
Package Length5.7
Weight1.16 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishBlack
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Phantom II
Gauge Number ColorWhite with black outline
Gauge SeriesAnalog
Gauge Range8:1-18:1 air/fuel ratio
Oem ReplacementNo
Lighting TypeLED
Part FitmentUniversal
Lighting ColorWhite
Gauge TypeAir/Fuel ratio
Sending UnitElectrical
Vendor Part Number7570
Package Qty1
Package TypeEA
