Vehicle Info NeededAUTO METERPART NUMBER: 105-7575

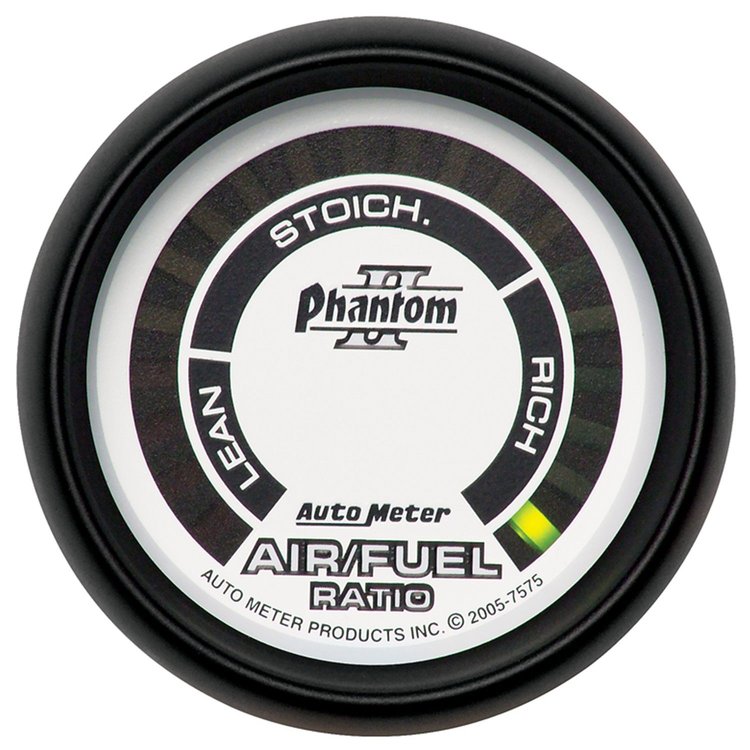

Phantom II Air/Fuel Ratio Gauge 2-1/16" electrical (full sweep)
$9988
Ships on 09/11/2026
Lowest Price GuaranteeAir/Fuel Ratio Gauges
- Phantom II Air/Fuel Ratio Gauge
- 2-1/16" electrical (full sweep)
- Lean to Rich
Works with most factory narrow band sensors or Auto Meter #105-2244 - Compatible with factory narrowband O2 sensors (0-1V)
- May require model 2244 if the vehicle does not have a factory narrowband primary O2 sensor
- Features LED radial bar graph display (gauge does not have provision for backlight)
- Will not work with wideband O2 sensors (0-5V) - please check your specific application before purchase
Running too lean while enjoying spirited driving in your vehicle is one of the leading causes of expensive engine damage. AutoMeter's Narrowband Air/Fuel Gauges pair with older Oxygen Sensors to warn of lean burn conditions under heavy engine load. Connects directly to the factory O2 sensor on many applications, or uses the AutoMeter 2244 Narrowband O2 sensor. Not compatible with 5 wire air/fuel sensors.
Part TypeGauge
BrandAUTO METER
Package Height4.6
Package Width4.6
Package Length5.1
Weight0.45 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite
Bezel ColorBlack
ShapeRound
SweepBar graph
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Bezel FinishBlack
Gauge Size (In.)2 1/16 diameter
Pointer ColorN/A
Gauge StyleAuto Meter Phantom II
Gauge Number ColorGreen/Yellow/Red
Gauge SeriesDigital
Gauge RangeLean-rich
Oem ReplacementNo
Lighting TypeLED Segments
Part FitmentUniversal
Lighting ColorRed/Yellow/Green
Gauge TypeAir/Fuel ratio
Sending UnitElectrical
Vendor Part Number7575
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
Some parts are not legal for use in California or other states with similar laws / regulations
