Vehicle Info NeededAUTO METERPART NUMBER: 105-7586

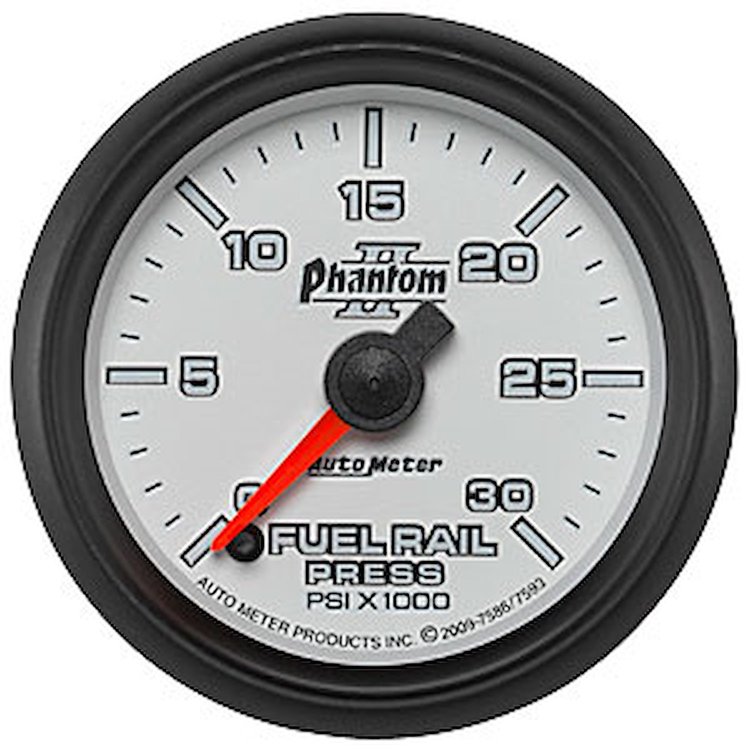

Phantom II Diesel Fuel Rail Pressure Gauge 2-1/16" electrical
Size :
$22399
Ships on 09/11/2026
Lowest Price GuaranteeFuel Rail Pressure Gauges
- Phantom II Diesel Fuel Rail Pressure Gauge
- 2-1/16" electrical
- 2003-07.5 5.9L for Cummins
- Duramax - codes LB7 LLY
- 0 to 30,000 psi
- Diesel Fuel Rail Pressure Gauge
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes wiring harness, mounting hardware, and detailed instructions for installation
- Included wire harness connects to original equipment fuel rail pressure sensor wiring
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Ultra high pressures in modern direct injected diesel applications require precise monitoring to assure the longevity and power output of your engine. Using AutoMeter's advanced Digital Stepper Motor Drive, this gauge provide the most accurate possible reading, professional grade reliability and smooth pointer movement. Connects directly to your factory sensor with an included wiring harness.
One Gauge, Two Faces
Mechanical and electrical (full or short sweep) in five diameters, each Phantom II Gauge has through-the-dial lighting and an LED pointer. The gauge faces have a reverse lighting effect, white during the day & dark with illuminated accents at night.
Part TypeGauge
Product LineAuto Meter Phantom II Gauges
BrandAUTO METER
Package Height4.4
Package Width4.7
Package Length5.0
Weight0.55 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)52.40 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom II
Gauge Number ColorWhite with black outline
Lighting TypeLED
Gauge TypeFuel Pressure
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-30000 PSI
Dial (Face Color)White
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-30,000
Lighting ColorWhite
Vendor Part Number7586
Package Qty1
Package TypeEA
