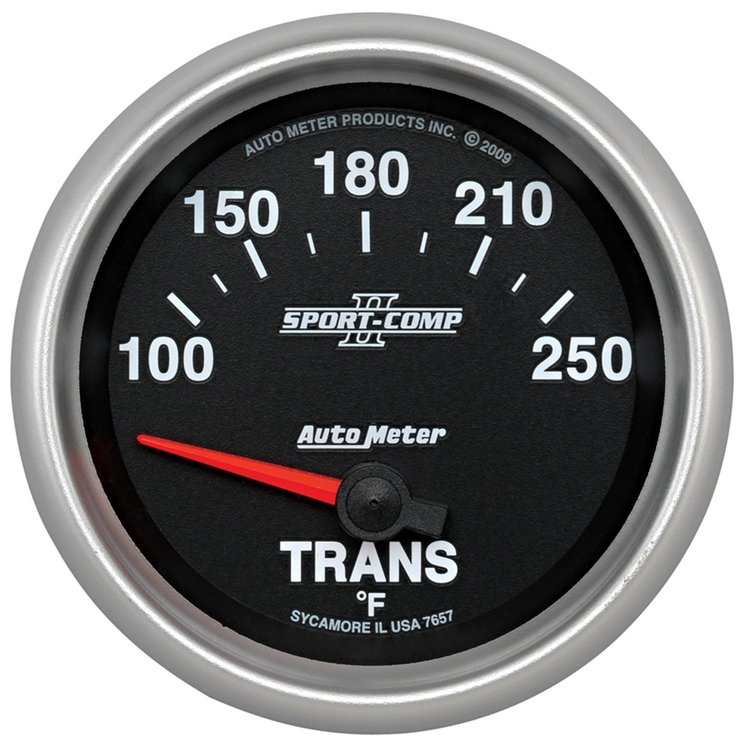

Sport-Comp II Transmission Temperature Gauge 2-5/8" Electrical (Short Sweep)
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-7657

Sport-Comp II Transmission Temperature Gauge 2-5/8" Electrical (Short Sweep)

$10399
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Transmission Temperature Gauges
    Sport-Comp II Transmission Temperature Gauge
  • 2-5/8" Electrical (Short Sweep)
  • 100°-250°F

    Includes 1/8" NPT sender, 3/8" & 1/2" NPT fittings
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
  • AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8" NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Part TypeGauge
BrandAUTO METER
Package Height5.4
Package Width6.2
Package Length6.3
Weight0.98 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)67.00 diameter
Gauge Face ColorBlack
Bezel ColorBrushed Aluminum
Sweep90 degree sweep
Size2.625 in (66.7 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Bezel FinishSilver
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Sport-Comp II
Gauge Number ColorWhite
Gauge SeriesAnalog
Gauge Range100-250 degrees F
Oem ReplacementNo
Lighting TypeLED
Part FitmentSemi Universal
Lighting ColorWhite
Gauge TypeTransmission temperature
Sending UnitElectrical
Vendor Part Number7657
Package Qty1
Package TypeEA
