Made in USA

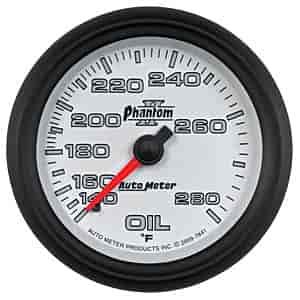

Phantom II Oil Temperature Gauge 2-5/8" Mechanical
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-7841

Phantom II Oil Temperature Gauge 2-5/8" Mechanical

$13170
ShippingShips on 09/09/2026
Lowest PriceLowest Price Guarantee

Oil Temperature Gauges
    Phantom II Oil Temperature Gauge
  • 2-5/8" Mechanical
  • 140°-280° F

    Includes 6' capillary tubing and 1/2" NPT adapter
  • Modern white LED through-the-dial lighting provides clear visibility during nighttime use
  • AutoMeter's race proven mechanical instruments provide trusted accuracy while being simple to install
  • No electrical system required for gauge operation - compatible with every street or race vehicle
  • Mechanical movements provide accuracy and durability even in the harshest environments
  • Gauge kit includes 1/2" NPT adapter, mounting hardware, and detailed instructions for installation
  • One of the single most important factors in determining how your engine performs (and how long it performs between rebuilds) is proper oil temperature during operation. Knowing your exact temp allows you to make sure you've got the proper oil weight and cooling capacity. Utilizing AutoMeter's ultra precise bourdon tube meter movement, you can be assured of the most accurate possible readings of the life blood of your engine. A 6" capillary tube and 1/2" NPT mounting nut are included.

Part TypeGauge
BrandAUTO METER
Package Height5.8
Package Width6.4
Package Length6.5
Weight1.05 PG
Part CategoryPerformance Parts
Sending Unit IncludedNo
MeasurementUS
Temperature140-300 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom II
Gauge Number ColorSilver with black outline
Gauge Range140-280 degrees F
Lighting TypeLED
Gauge TypeOil Temperature
Sending UnitMechanical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
TypeMechanical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number7841
Package Qty1
Package TypeEA
