Vehicle Info NeededAUTO METERPART NUMBER: 105-7855

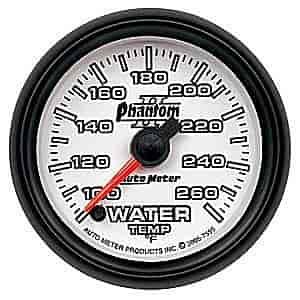

Phantom II Water Temperature Gauge 2-5/8" Electrical (Full Sweep)
$20199
Ships on 09/09/2026
Lowest Price GuaranteeWater Temperature Gauges
- Phantom II Water Temperature Gauge
- 2-5/8" Electrical (Full Sweep)
- 100°-260° F
- Includes 1/8" NPT sender, 3/8" & 1/2" NPT fittings, and 8' wiring harness
- Features peak recall & LED warning light
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
- Acquire data for later review with one-touch Peak Recall functionality
- Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
- Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
Engines don't like high water temperatures, Heat is the enemy of performance and reliability. Keep tabs on your temps with the most accurate, quickest responding water temperature gauge on the market. AutoMeter's advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation.
Part TypeGauge
BrandAUTO METER
Package Height5.2
Package Width6.2
Package Length6.4
Weight1.0 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Temperature100-260 F
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom II
Gauge Number ColorSilver with black outline
Gauge Range100-260 degrees F
Lighting TypeLED
Gauge TypeWater Temperature
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number7855
Package Qty1
Package TypeEA
