Vehicle Info NeededAUTO METERPART NUMBER: 105-7874

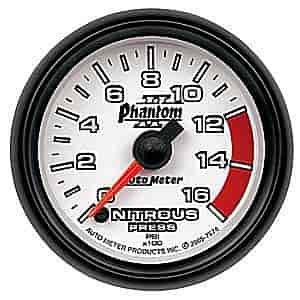

Phantom II Nitrous Pressure Gauge 2-5/8" Electrical (Full Sweep)
$26428
Ships on 09/08/2026
Lowest Price GuaranteeNitrous Pressure Gauges
- Phantom II Nitrous Pressure Gauge
- 2-5/8" Electrical (Full Sweep)
- 0-1600 psi
- Includes 1/8" NPT sender and 8' wiring harness
- Features peak recall & LED warning light
- Modern white LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 1/8" NPT stainless steel pressure transducer, wiring harness, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Acquire data for later review with one-touch Peak Recall functionality
- Set a custom alert specific to your vehicle & receive warning notification to highlight the need for driver attention
- Includes data acquisition grade solid-state pressure transducer, providing unmatched accuracy and durability even in the harshest environments
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
- The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
Proper nitrous pressure is the difference between extracting maximum power from your engine and finishing second. AutoMeter's Digital Stepper Motor Nitrous Pressure Gauge uses our advanced 1/8" NPT solid state pressure transducer to give you the most precise possible reading of your system pressure ,up to 1600 psi. Built with the accuracy and durability required by the professional racer, there simply isn't a better possible solution. A direct plug in wiring harness is included for ease of installation and data logging is available thanks to a .5 - 4.5v analog output.
Part TypeGauge
BrandAUTO METER
Package Height5.5
Package Width6.2
Package Length6.5
Weight1.03 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Gauge Size (Mm)67.00 diameter
Gauge Face ColorWhite
Bezel ColorBlack
SweepFull sweep
Size2.625 in (66.7 mm)
Bezel FinishBlack
Gauge StyleAuto Meter Phantom II
Gauge Number ColorSilver with black outline
Lighting TypeLED
Gauge TypeNitrous pressure
Sending UnitElectrical
Liquid-FilledNo
Bezel StyleSuper Bezel
QuantitySold individually
Pressure0-1600 PSI
Dial (Face Color)White
Gauge Size (In.)2 5/8 diameter
TypeElectrical
Pointer ColorFluorescent Red
Gauge SeriesAnalog
Oem ReplacementNo
Gauge Range (Psi)0-1,600
Part FitmentUniversal
Lighting ColorWhite
Vendor Part Number7874
Package Qty1
Package TypeEA
