Made in USA

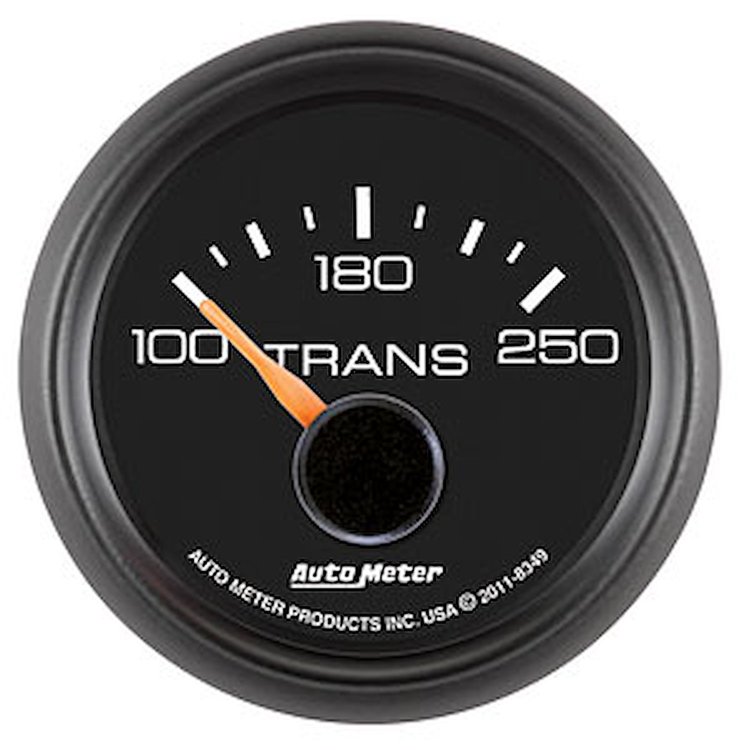

GM/Chevy Factory Match Transmission Temperature Gauge 2-1/16" Electrical (Short Sweep)
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-8349

GM/Chevy Factory Match Transmission Temperature Gauge 2-1/16" Electrical (Short Sweep)

$9199
ShippingShips Tomorrow
Lowest PriceLowest Price Guarantee

    GM/Chevy Factory Match Transmission Temperature Gauge
  • 2-1/16" Electrical (Short Sweep)
  • 100°-250°


  • Electric Transmission Temperature Gauge
  • Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
  • 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, mounting hardware, and detailed instructions for installation
  • AutoMeter's race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
  • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8" NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.

Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length5.0
Weight0.66 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBlack
Sweep90 degree sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Bezel FinishBlack
Gauge Size (In.)2 1/16 diameter
Pointer ColorOrange
Gauge StyleAuto Meter Factory Match
Gauge Number ColorWhite
Gauge SeriesAnalog
Gauge Range100-250 degrees F
Oem ReplacementNo
Lighting TypeLED
Part FitmentDirect Fit
Lighting ColorWhite
Gauge TypeTransmission temperature
Vendor Part Number8349
Package Qty1
Package TypeEA
