Made in USA
Factory Match 2-1/16" Transmission Temperature Gauge 100°-260° F (FSE)
InfoVehicle Info Needed
AUTO METERPART NUMBER: 105-8457

Factory Match 2-1/16" Transmission Temperature Gauge 100°-260° F (FSE)

$16599
1 left in stock
ShippingShips on Sep 14, 2026
Lowest PriceLowest Price Guarantee

Transmission Temperature Gauges

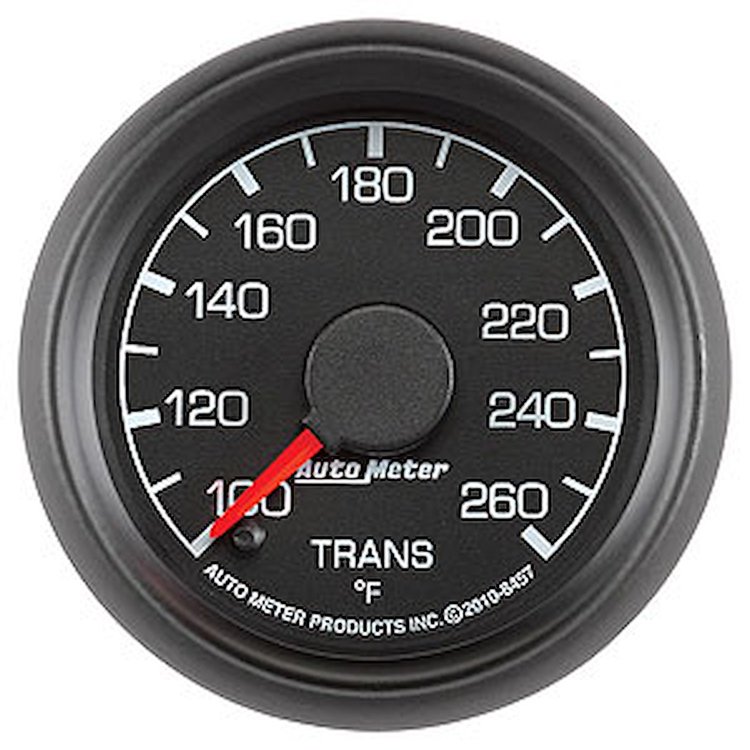

    Factory Match 2-1/16" Transmission Temperature Gauge
  • 100°-260° F (FSE)

    INCLUDES 1/8" NPT SENDER, 3/8" & 1/2" NPT FITTINGS & 8' HARNESS
  • Factory matched LED through-the-dial lighting provides clear visibility during nighttime use and matches OEM instrumentation
  • Gauge kit includes 1/8" NPT temperature sender, 3/8" and 1/2" NPT adapters, wiring harness, mounting hardware, and detailed instructions for installation
  • Includes data acquisition grade temperature sender, providing unmatched accuracy and durability even in the harshest environments
  • AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy while keeping hazardous fluids outside of the vehicle
  • The accuracy of digital stepper motor gauges is further increased by utilizing a self calibration sequence during power up
  • Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8" NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.

Part TypeGauge
BrandAUTO METER
Package Height4.5
Package Width4.6
Package Length5.0
Weight0.71 PG
Part CategoryPerformance Parts
Sending Unit IncludedYes
Liquid-FilledNo
Gauge Size (Mm)52.40 diameter
Gauge Face ColorBlack
Bezel ColorBlack
SweepFull sweep
Size2.063 in (52.4 mm)
Bezel StyleSuper Bezel
QuantitySold individually
Dial (Face Color)Black
Bezel FinishBlack
Gauge Size (In.)2 1/16 diameter
Pointer ColorFluorescent Red
Gauge StyleAuto Meter Factory Match
Gauge Number ColorWhite
Gauge SeriesAnalog
Gauge Range100-260 degrees F
Oem ReplacementNo
Lighting TypeLED
Lighting ColorGreen
Gauge TypeTransmission temperature
Sending UnitElectrical
Vendor Part Number8457
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
