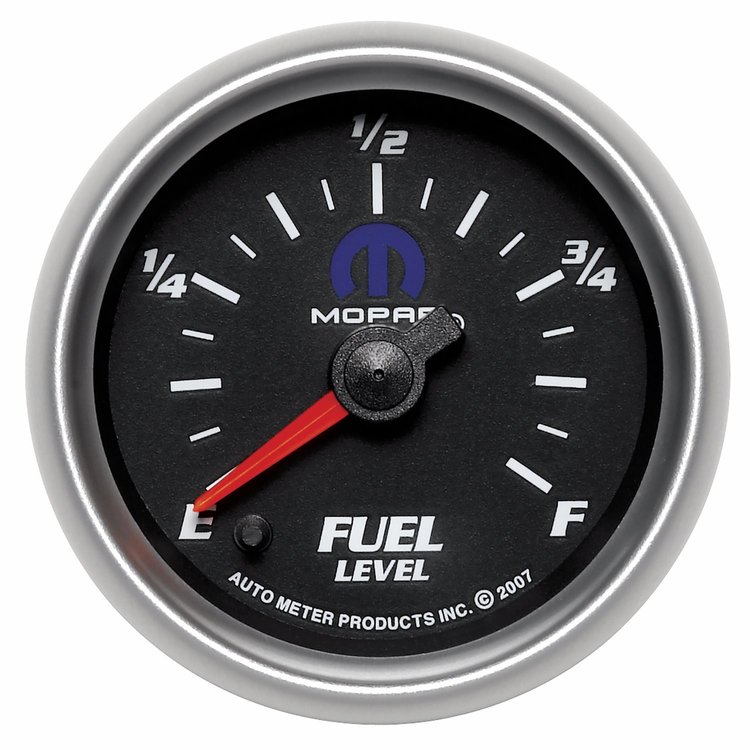

Vehicle Info NeededOfficially Licensed Mopar Fuel Level Gauge 2-1/16" Electrical
Size :
Ships on 09/09/2026
Lowest Price Guarantee- Officially Licensed Mopar Fuel Level Gauge
- 2-1/16" Electrical
- 0-280 ohms
- Red Pointer For Quick Glance Monitoring
- Silver Bezel
- Modern LED through-the-dial lighting provides clear visibility during nighttime use
- Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation
- Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
- User definable resistance setting programmable anywhere between 0-280 ohms
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- AutoMeter's race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it's easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our 'snapshot' programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn't an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
- Auto Meter is proud to introduce MOPAR Performance series gauges, officially licensed from MOPAR. MOPAR Instruments by Auto Meter feature MOPAR blue through-the-dial LED lighting, illuminated MOPAR "M" logo, anodized silver super bezels, and choice of white or black dial. Patented high contrast glowing red pointers ensure accurate, easy-to-read information in any driving condition. It's not just about looks, it's about choice. Born from competition, this gauge series offers the option of short sweep electric, mechanical, and full sweep electric stepper gauge movements to allow you to build your dash the way you want. Install only a tach or an entire set today. Show your Mopar pride, and give your project the instrumentation it deserves!
