Vehicle Info NeededAUTO METERPART NUMBER: 105-BVA-260K

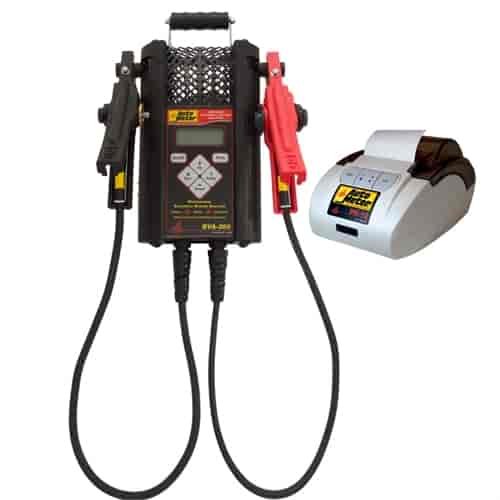

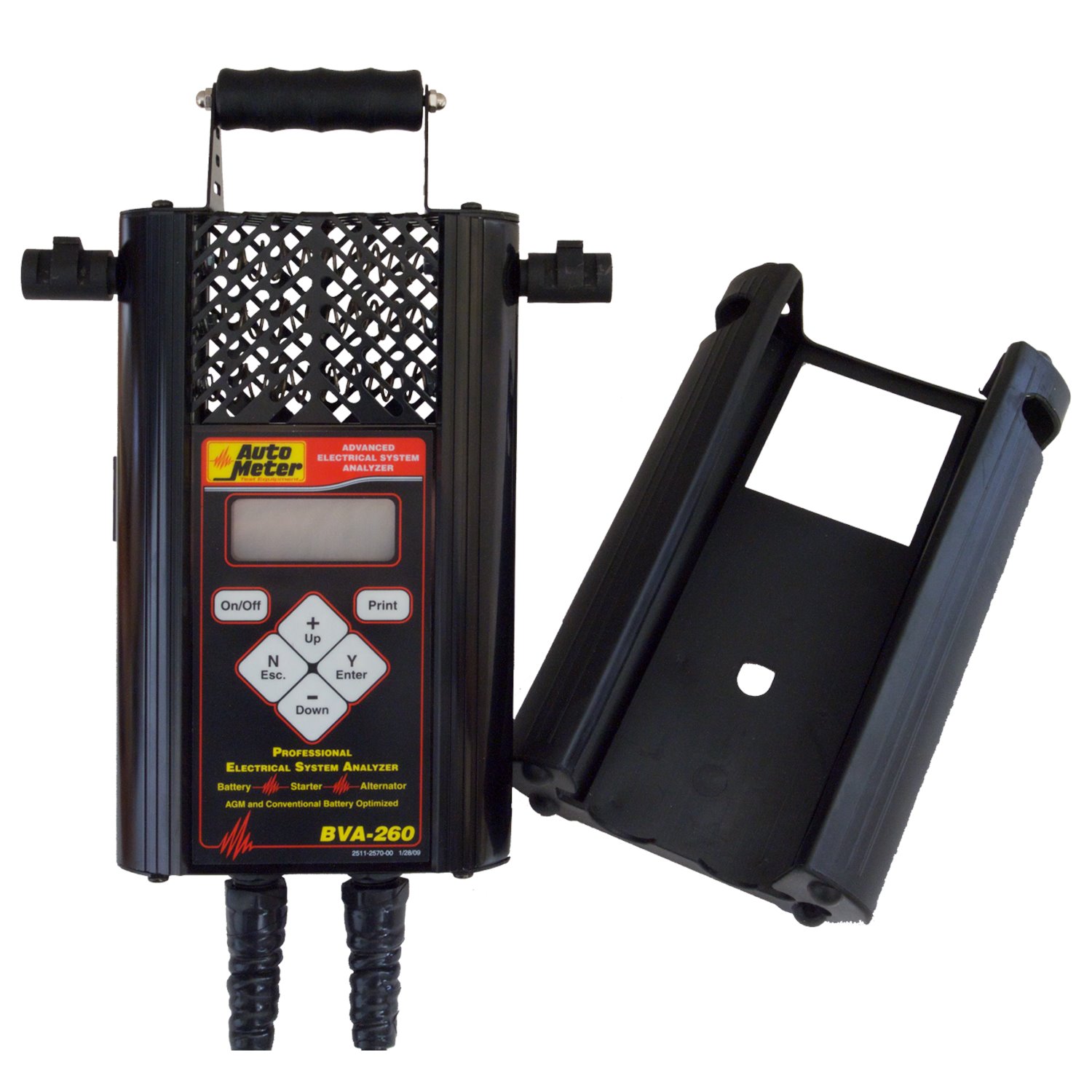

TESTER/CASE/PRINTER BVA-260
$2,35399
Ships on Sep 04, 2026
Lowest Price Guarantee- TESTER/CASE/PRINTER BVA-260
- Best in Class AGM Battery Test Accuracy
- Rugged Design For Professionals
- Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
- Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
- Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell. This eliminates the need to apply inconsistent loads, such as headlights, fans, etc. which makes our products easier to use and more accurate.
- English and Spanish language menus and test results.
- Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
- Easily upgraded for future tech enhancements using AutoMeter's exclusive AMP Link software.
- Advanced Digital Pulse Load (DPL) technology - patented test process and algorithm allowing operators of this product to rapidly measure a battery's ability to provide adequate cranking power necessary to start the vehicle without the need for time consuming manual electrical system load tests.
- True-Load ' This AutoMeter equipment is unique compared with other products on the market in that this tester has the ability to apply a known significant load (True-Load) directly through the tester connections allowing for a more rapid and accurate test of the vehicle's battery, starter, and charging system by the operator. This provides the ultimate in accurate high-speed battery testing when paired with AutoMeter's Advanced Digital Pulse Load technology process, reducing the margin of operator error and workload during the diagnosis.
- 16 Gauge, 20" leads with professional grade clamps that are easily field serviceable
One of the most technologically advanced handheld testers currently available, the BVA-230 sets the bar for accuracy, speed and ease of use. Using our patented Digital Pulse Load' technology to deliver a BCI compliant true load test, Includes Printer & Case
Part TypePrinter
BrandAUTO METER
Package Height5.0
Package Width16.5
Package Length19.5
Part CategoryPerformance Parts
Part FitmentUniversal
Vendor Part NumberBVA-260K
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
