Vehicle Info NeededAUTO METERPART NUMBER: 105-DM-46

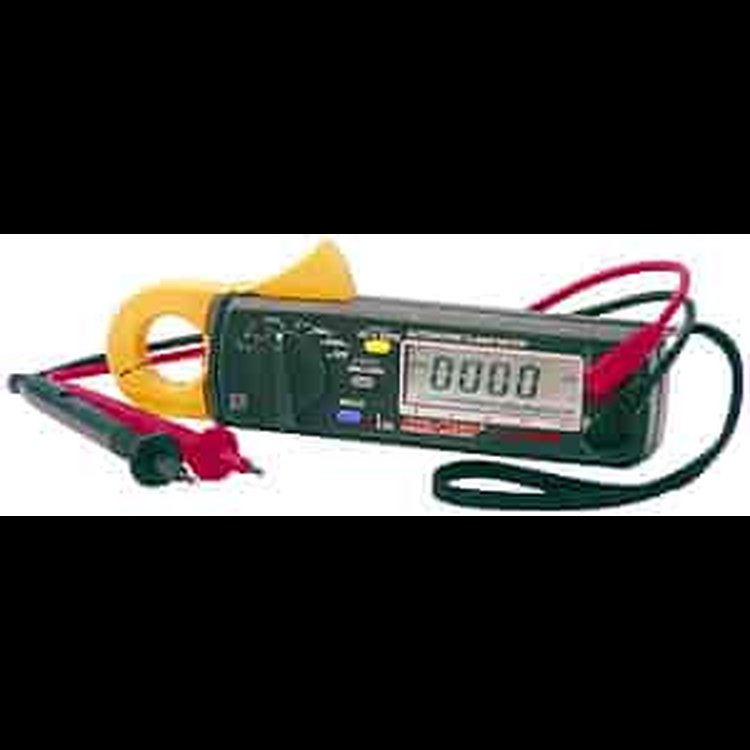

DM-46 Digital Volt/Ohm/Ammeter
$45299
Ships on 09/08/2026
Lowest Price GuaranteeCircuit Testers
- DM-46 Digital Volt/Ohm/Ammeter
- Low resolution DC amp range for easy detection of parasitic drain
- Fast one touch zero button
- Features a "Hold" button that freezes the current test parameter, and is sophisticated enough to perform a complete charging system analysis.
- Works on AC and DC circuits
The DM-46 is designed with the professional technician in mind. This compact 23mm (15/16") inductive clamp multimeters are designed to easily enclose small wires and yet are large enough to measure most large wires. You can easily measure computer memory draw, leakage currents and more with their large LCD readout. Also features a "Hold" button that freezes the current test parameter, and is sophisticated enough to perform a complete charging system analysis.
Digital Display: 3.75" LCD with 40 seg. bar graph
Weight: .58 lbs
AC/DC Current 40A with 10ma Resolution, 0-150A with 100mA Resolution, 150-200A with 100mA Resolution
AC/DC Current Overload Protection: 400A
AC/DC Voltmeter Range: 400mV-600V with a 1mV to 1V Resolution, Overload Protection 800V AC or 1000V DC
Battery: 1.5V with low battery indication
Capacitance: 4nF-40?F with 1pF to 10nF Resolution
Capacitance Overload Protection AC 600V
Continuity: 40-400 Ohms with .1 Ohm Resolution, Beeping <40.0 Ohms (approx.)
Continuity Overload Protection: AC 600V
Resistance: 400 Ohm with .1 Ohm Resolution, 4K Ohm with 1 Ohm Resolution, 40K Ohm with 10 Ohm Resolution, 400K Ohm with 100 Ohm Resolution, 4M Ohm with 1K Ohm Resolution, 40M Ohm with 10K Ohm Resolution
Resistance Overload Protection: AC 600V
This compact 23mm (15/16") inductive clamp multimeters are designed to easily enclose small wires and yet are large enough to measure most large wires. You can easily measure computer memory draw, leakage currents and more with their large LCD readout.
Part TypeAmmeter
BrandAUTO METER
Package Height2.5
Package Width4.5
Package Length9.0
Weight2.0 PG
Part CategoryAccessories
Vendor Part NumberDM-46
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
