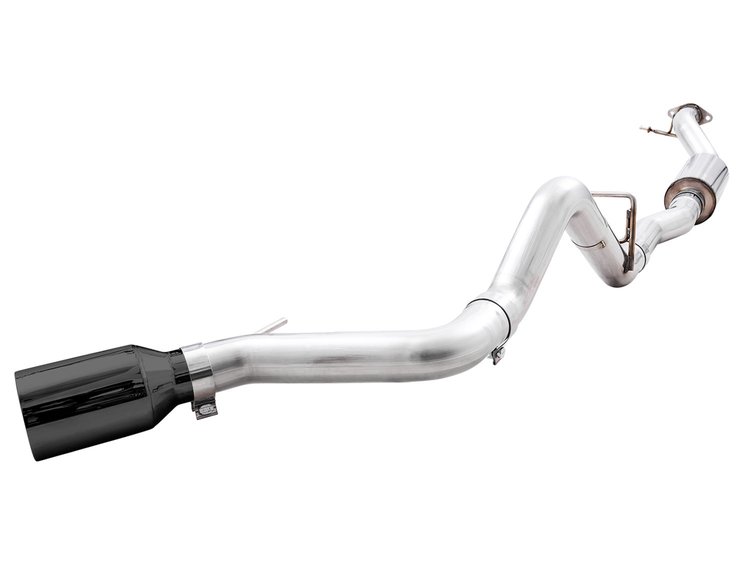

0FG Side Exit Exhaust for Ford Bronco with BashGuard - Single 5" Diamond Black Tip
InfoVehicle Info Needed
AWE EXHAUSTPART NUMBER: 090-3015-23789

0FG Side Exit Exhaust for Ford Bronco with BashGuard - Single 5" Diamond Black Tip

$1,07500
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Ford
0FG Side Exit Exhaust
  • AWE 0FG Catback Exhaust for Ford Bronco with BashGuard - Single 5" Diamond Black Tip
  • Modular design enables 0FG to be the one exhaust for every terrain
  • 3” modular Cat Back configuration
  • Tip Qty: 1

    3015-23789 Features:

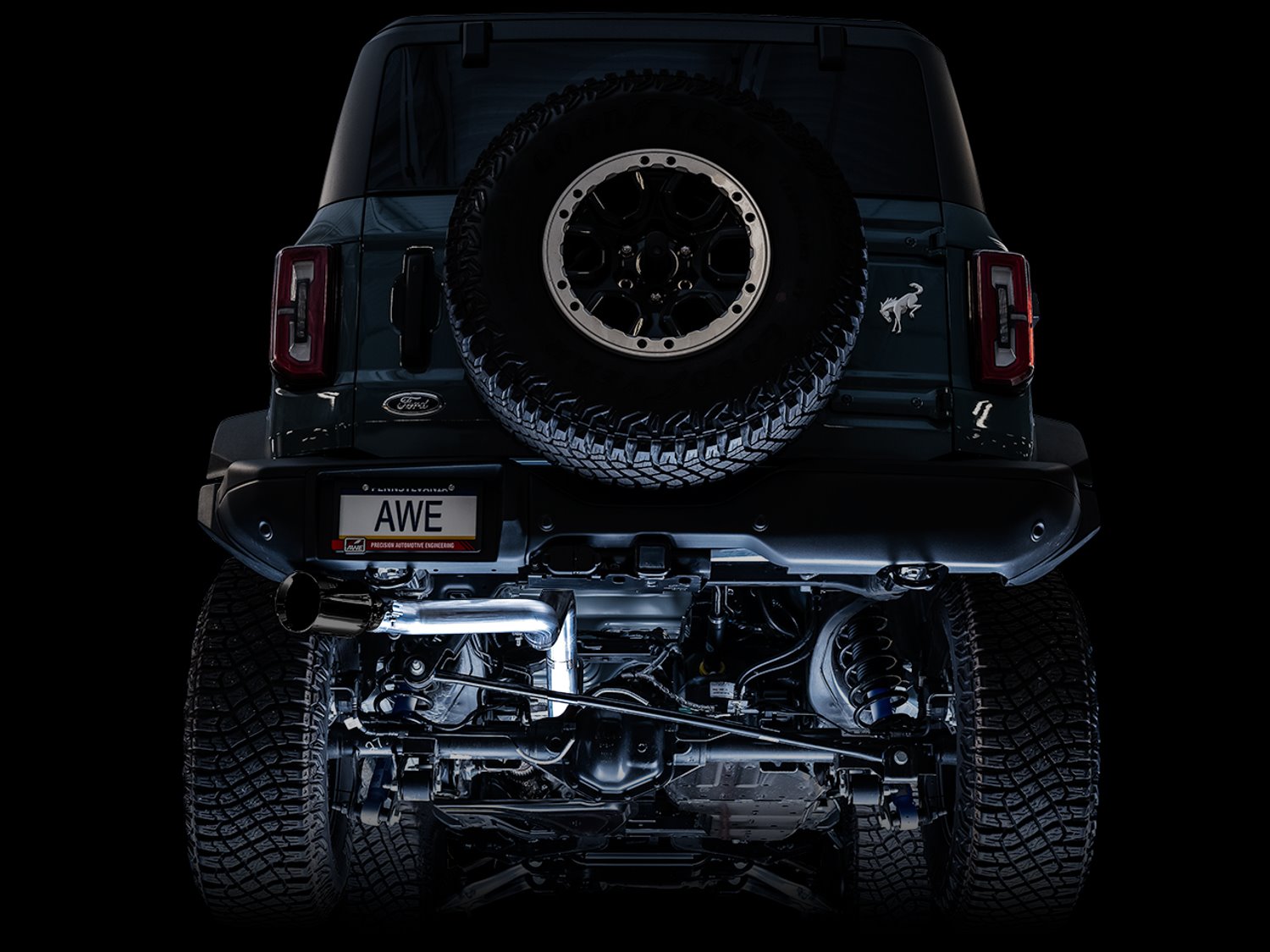

    Handcrafted from US-made 3” T304L stainless steel, the 0FG Exhaust is a straight-through Cat Back configuration applicable to all Bronco models – 2.3T, 2.7TT, 2-door and 4-door – with modular capabilities unlike anything on the planet. The 0FG Exhaust features a bespoke AWE resonator in the mid pipe to produce an appropriate dose of aggression, followed by smooth bends towards the rear of the Bronco. On the way to the rear, depending on how many doors there are on your Bronco, lies an included adapter to bridge the difference in length across models. 2-door owner simply won't need these adapters, but 4-door owners will be thrilled. The 0FG modularity shines at the final breakpoint in the exhaust route. Not only does the 0FG accommodate various tip options, it also accommodates AWE’s BashGuard. What’s BashGuard? Thanks for asking. The AWE BashGuard is included in every 0FG exhaust, and enables the 0FG to be the one exhaust to rule them all. Thanks to the modularity in the rear, simply remove the rear axle-back portion of the 0FG and replace it with the high-tuck BashGuard. BashGuard is appropriately equipped with a .125” thick reinforced stainless ring. Perfect for bashin’. This version of the AWE Bronco Exhaust is the Single Side Exit: one big ‘n’ proud 5” double-walled Diamond Black, straight-cut tip exiting behind the left rear tire, adding a dose of aggression to the Bronco you never knew it needed. One exhaust. Every terrain. Only from AWE.

    • 2.3T, 2.7TT, 2-door and 4-door applications – all covered via one exhaust
    • Bespoke mounting bracket allows for 2.3T installation without bumper removal
    • AWE BashGuard included in every configuration to provide best-in-class clearance on the fly
    • BashGuard™ features a .125” thick reinforced stainless ring on the outlet, built for bashing
    • Tip options include dual 4.5” slash-cut or single 5” straight-cut, all double-walled, and available in Chrome Silver or Diamond Black
    • Features locking collars for exhaust hangers to prevent movement
    • Handcrafted from CNC mandrel-bent, U.S.-sourced .065”-wall T304L stainless steel
    • 2.7TT dyno verified gains of 4 hp and 3 lb-ft of torque at the wheels
    • 2.3T dyno-verified gains of 3 hp and 3 lb-ft of torque at the wheels
    • Less is more: clean, straight-through design for maximum performance and tone
    • Proudly engineered, designed, and manufactured in-house, in the USA
    • Pure bolt-on, no-cutting required
    • Perfect Fitment Guarantee
    • AWE No CEL Guarantee
    • Lifetime Warranty
    • 180 Technology: Yes
    • 50 State Legal: Yes
    • Edition: 0FG Edition
    • Fit Gurantee: Yes
    • Material: T304L Stainless Steel
    • No CEL Guarantee: Yes
    • System Type: Cat Back
    • Tip Diameter: 5 in
    • Tip Diameter: 127 mm
    • Tip Finish: Diamond Black
    • Tune Required: No
    • Valves: No
  • Part TypeExhaust System
    BrandAWE EXHAUST
    Package Height14.0
    Package Width24.0
    Package Length48.0
    Weight70.0 PG
    Vendor Part Number3015-23789
    Package Qty1
    Package TypeEA
