Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

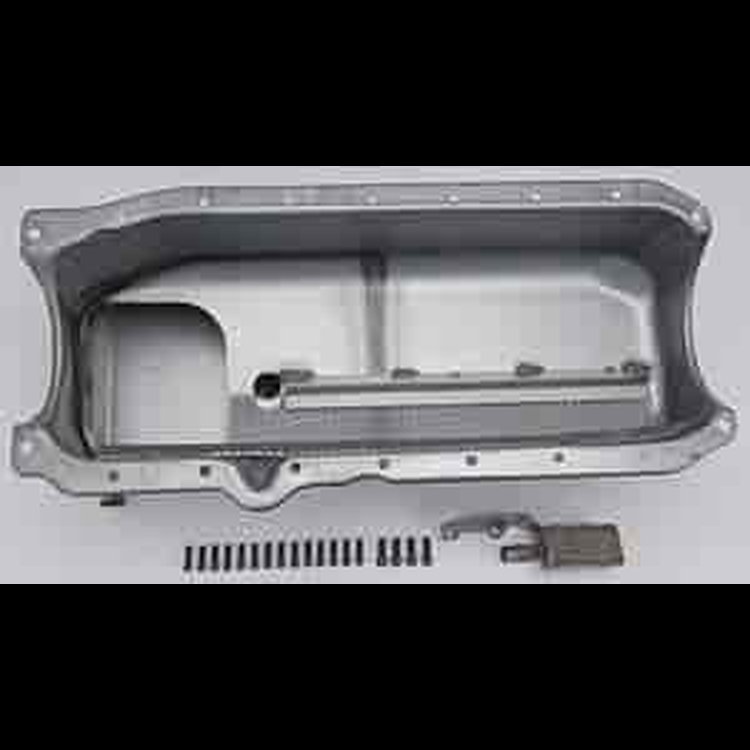

- Drag Race Oil Pan
- SB-Chevy
- 4-1/2'' x 8'' Steel Oil Pan
- Includes Standard Volume Pickup & Pan Bolts
- Fits 1986-Up w/Pass Side Dip Stick
- Will Fit Up To 3.875'' Stroke
- B&B Steel Oil Pans for Sportsman Racers give you the sophisticated oil control features you need at a price you can afford. These wet-sump pans are highly recommended for super gas, super comp and bracket classes.
- Built-in scraper and unidirectional screen reduce windage and add horsepower.
- Rear sump with trap-door baffles controls oil under braking and acceleration.
- Can be used with all popular starter/flywheel combinations.
- 8'' deep, 7quart capacity designs fits most chassis (except Chevy II).
- Jig-welded .055'' steel for reliability.
- Uses standard oil filter.
- Includes magnetic drain plug, oil pump pick up, and oil pan bolts.
Features:
Part TypeOil Pan
Product LineB&B Drag Race Oil Pans
BrandB&B
Package Height9.0
Package Width16.0
Package Length29.0
Weight13.4 PG
Part CategoryPerformance Parts
Oil Pan Capacity6 quarts
Hardware IncludedYes
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedYes
QuantitySold individually
Oil Pan FinishBlack painted
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.875 in (98.425 mm)
Gaskets IncludedNo
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedYes
Windage Tray IncludedYes
Dipstick LocationPassenger side
Kicked OutNo
Stroker ClearancedYes
Vendor Part Number91089
Package Qty1
Package TypeEA
