Vehicle Info NeededMOROSOPART NUMBER: 710-20205

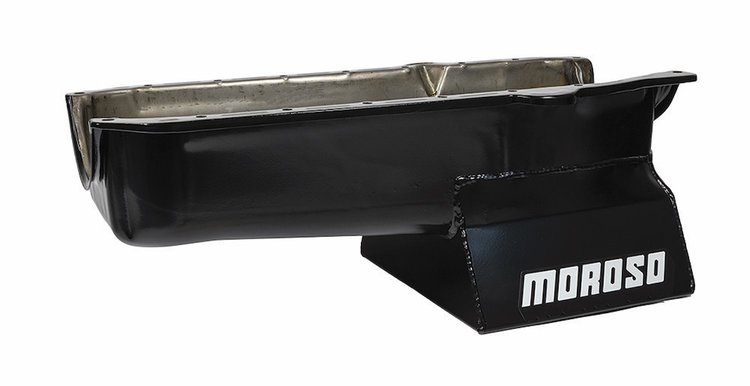

20205 Street/Strip Oil Pan for 1986-Up Small Block Chevy
$27313
2 left in stock
Ships Today
Lowest Price GuaranteeSmall Block Chevy
Street/Strip Oil Pan1986-Up Small Block Chevy Passenger-Side Dipstick With 1-Piece Rear Main Seal Kicked-Out Sump Wet Sump 7-quart capacity 8.25" Depth Black Finish
- Fits most chassis (except 1962-67 Chevy II, V8 Vega and Monza)
- Accepts up to 4.125 in. stroke with most steel rods
- Fits 4 Bolt Main Caps Including Front and Rear
- Kicked-out style sump provides additional ground clearance
- Trap door baffle for improved oil control
- Compatible with most starter/flywheel combinations
- Will clear most stock exhaust
- Will clear Borla, Hedman and Hooker headers
Note: Oil pan capacities do not include oil filter capacity
Recommended Pickups:
- 710-24170 -- Fits Moroso Small Block Chevy Race Pump 710-22101 and Stock Style Pumps
- 710-24350 -- Fits Moroso Small Block Chevy HV Race Pump No 710-22111 and Stock Style Hi-Volume pumps
- 710-24320 -- Fits Moroso Big Block Chevy Race Pump Nos 710-22150, 710-22160, or 710-22162 and Mellings 689-M77HV
- 710-24360 -- Fits Mellings 689-M155HV
Part TypeOil Pan
BrandMOROSO
Package Height9.0
Package Width15.7
Package Length23.5
Weight12.4 PG
Part CategoryPerformance Parts
Oil Pan Capacity7 quarts
Hardware IncludedNo
Dipstick ProvisionYes
BaffledYes
Sump StyleWet
Pickup IncludedNo
Drain Plug Thread Size (In.)1/2-20
QuantitySold individually
Oil Pan FinishBlack
Kickout PositionDriver and passenger side
Oil Pan MaterialSteel
Maximum Stroke With Oe Rod3.8 in (96.52 mm)
Gaskets IncludedNo
Oil Pan Depth8.25 in (209.6 mm)
Rear Main Seal Style1-piece
Sump LocationRear
Crank Scraper IncludedNo
Windage Tray IncludedNo
Dipstick LocationPassenger side
Part FitmentDirect Fit
Kicked OutYes
Stroker ClearancedYes
Vendor Part Number20205
Package Qty1
Package TypeEA
