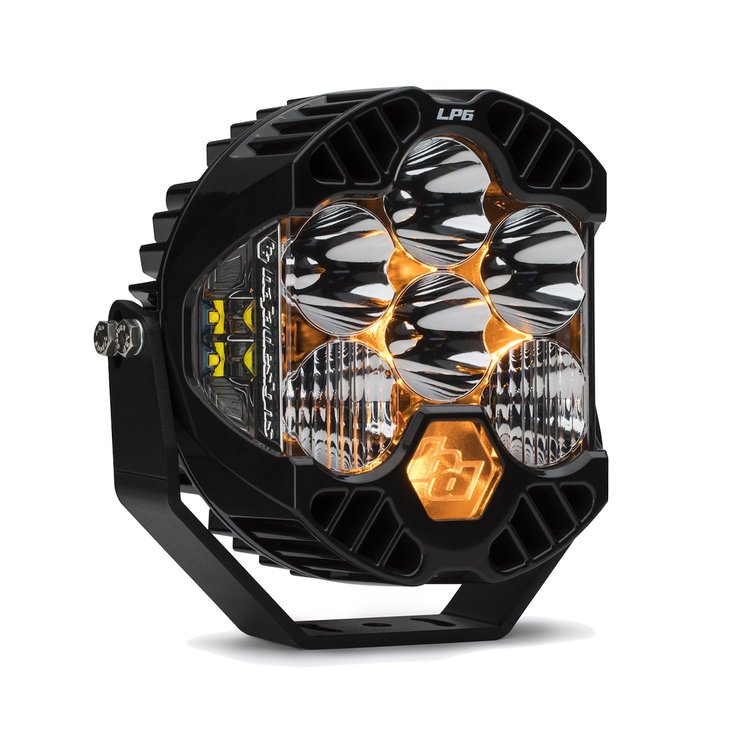

LP6 Pro LED Auxiliary Light Pod [Universal]

Name: LP6 Pro LED Auxiliary Light Pod [Universal]
Brand: BAJA DESIGNS
SKU: 803-270003
Price: 532.95 USD
Availability: InStock

^$532⁹⁵

More than 10 available

Ships on Sep 08, 2026

Lowest Price Guarantee

Driving/Combo

LP6 Pro LED Auxiliary Light Pod

Universal

Driving/Combo

Clear

Baja Designs 270003 Features:

The LP6 Pro is a '6-inch powerhouse' featuring a total of 10,300 lumens and a 200 degree spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting'courtesy of'our patented Integrated Peripheral Technology (IPT). To keep your light'performing'at its'highest potential, the LP6'integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel'through'the front of the housing,'over the rear heat sinks'-'drastically improving cooling capacity and performance.'With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.'

uService -Replaceable Lenses And Optics
ClearView -All The Light, Right Where You Need It
MoistureBlock -Waterproof, Rain Proof, Submersible
CopperDrive -Only LED Driven At 100 Percent
5000K Daylight -Less Driver Fatigue, Natural Color
Amperage Rating (A): 6.5
Average Rated Life (hr.): 49,930
Backlight Amperage Rating (A): 0.3
Backlight Wattage (W): 4.14
Beam Pattern: Driving/Combo
Bezel Material: Billet Machined Aluminum
Brightness (Lumens): 8,600
Depth (in.): 3.2
Height (in.): 6.5
Housing Color: Black
Housing Material: Hard Anodized Machined Aluminum
Length (in.): 6.5
Lens Color: Clear
Lens Material: Hardcoated Polycarbonate
Light Quantity: 1
Lighting Modes: High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity: 6
Lighting Technology: LED
Lighting Type: Forward Projecting
Mounting Hardware Included: Yes
Mounting Hardware Material: Stainless Steel
Overvoltage Protection: Built-In
Secondary Amperage Rating (A): 1.0
Secondary Brightness (Lumens): 1,700
Secondary Light Quantity: 4 LEDs
Secondary Lighting Technology: LED
Secondary Lighting Type: Integrated Peripheral Technology (IPT)
Secondary Wattage (W): 15
Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
Terminal Connector: DT06-4S Deutsch
Terminal Type: Mating Connector
Wattage (W): 90
Wiring Harness Included: No

Driving Light Pods

Baja Designs offers three LP LED light models designed to provide high-wattage auxiliary lighting for near-field and midfield use. These include the LP Pro, LP Racer Edition, and LP Sport. The LP Pro offers an all-around light with driving/combo or spotlight beam patterns and three power modes, including daytime running light, low-power, and high-power. On the other hand, the LP Racer Edition has a tighter pattern than the LP Pro, providing long-distance visibility and high-speed driving while offering the same power modes as the Pro. Lastly, the LP Sport has the same beam patterns as the LP Pro but with a simple on-off function and less forward light than the other two models, making it more suitable for sidelight applications.

Part TypeAuxiliary Light

Product LineBaja Designs LP Series LED Auxiliary Light Pods

BrandBAJA DESIGNS

Package Height5.3

Package Width9.9

Package Length12.0

Weight5.5 PG

Part CategoryAccessories

Part FitmentSemi Universal

Vendor Part Number270003

Package Qty1

Package TypeEA
