Made in USA

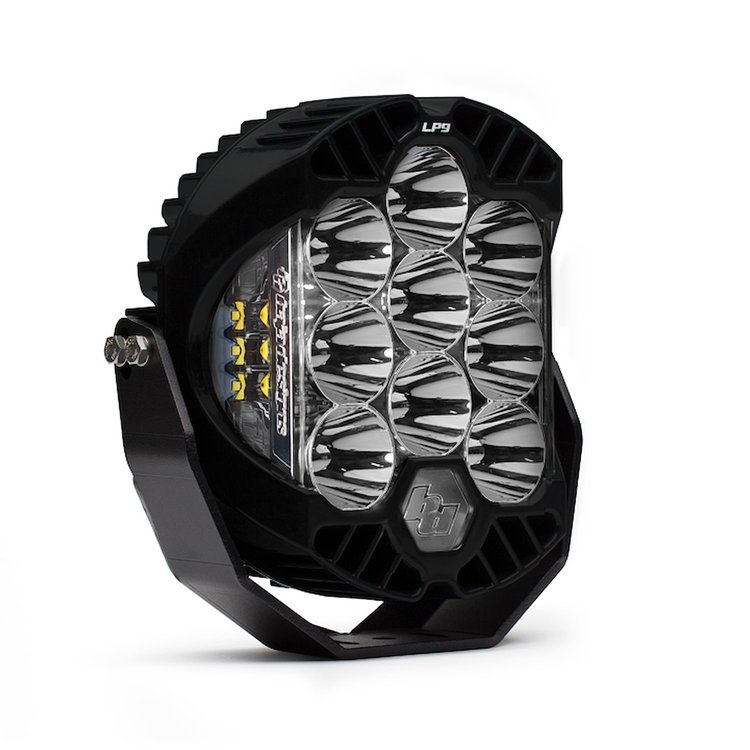

LP9 Sport LED Auxiliary Light Pod [Universal]
InfoVehicle Info Needed
BAJA DESIGNSPART NUMBER: 803-350001

LP9 Sport LED Auxiliary Light Pod [Universal]

$47095
ShippingShips on 09/08/2026
Lowest PriceLowest Price Guarantee

Spot
LP9 Sport LED Auxiliary Light Pod
  • Universal
  • Spot
  • Clear

    Baja Designs 350001 Features:

    The LP9 Sport is perfect for enthusiasts that want a'full size light with modern styling and advanced features. The Sport model still includes all of the technology that makes the LP9 series so popular. From Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200 degree spread of usable light. The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for'Integrated Peripheral Technology (IPT) which produce'2,280'lumens at'21 watts. As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens. Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature. These features are available on the LP9 Pro and Racer Editions.

    • uService -Replaceable Lenses And Optics
    • ClearView -All The Light, Right Where You Need It
    • MoistureBlock -Waterproof, Rain Proof, Submersible
    • CopperDrive -Only LED Driven At 100 Percent
    • 5000K Daylight -Less Driver Fatigue, Natural Color
    • Amperage Rating (A): 4.6
    • Average Rated Life (hr.): 49,930
    • Beam Pattern: Spot
    • Bezel Material: Billet Machined Aluminum
    • Brightness (Lumens): 6,500
    • Depth (in.): 3.25
    • Height (in.): 8
    • Housing Color: Black
    • Housing Material: Powder Coated Cast Aluminum
    • Length (in.): 8
    • Lens Color: Clear
    • Lens Material: Hardcoated Polycarbonate
    • Light Quantity: 1
    • Lighting Modes: Beam
    • Lighting Quantity: 9
    • Lighting Technology: LED
    • Lighting Type: Forward Projecting
    • Mounting Hardware Included: Yes
    • Mounting Hardware Material: Stainless Steel
    • Overvoltage Protection: Built-In
    • Secondary Amperage Rating (A): 1.52
    • Secondary Brightness (Lumens): 2,280
    • Secondary Light Quantity: 6 LEDs
    • Secondary Lighting Technology: LED
    • Secondary Lighting Type: Integrated Peripheral Technology (IPT)
    • Secondary Wattage (W): 21
    • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
    • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
    • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
    • Terminal Connector: DT06-4S Deutsch
    • Terminal Type: Mating Connector
    • Wattage (W): 61
    • Wiring Harness Included: No
  • Part TypeAuxiliary Light
    BrandBAJA DESIGNS
    Package Height8.0
    Package Width10.0
    Package Length12.0
    Weight6.5 PG
    Part CategoryAccessories
    Part FitmentSemi Universal
    Vendor Part Number350001
    Package Qty1
    Package TypeEA
    No Questions
    No Reviews
