Made in USA

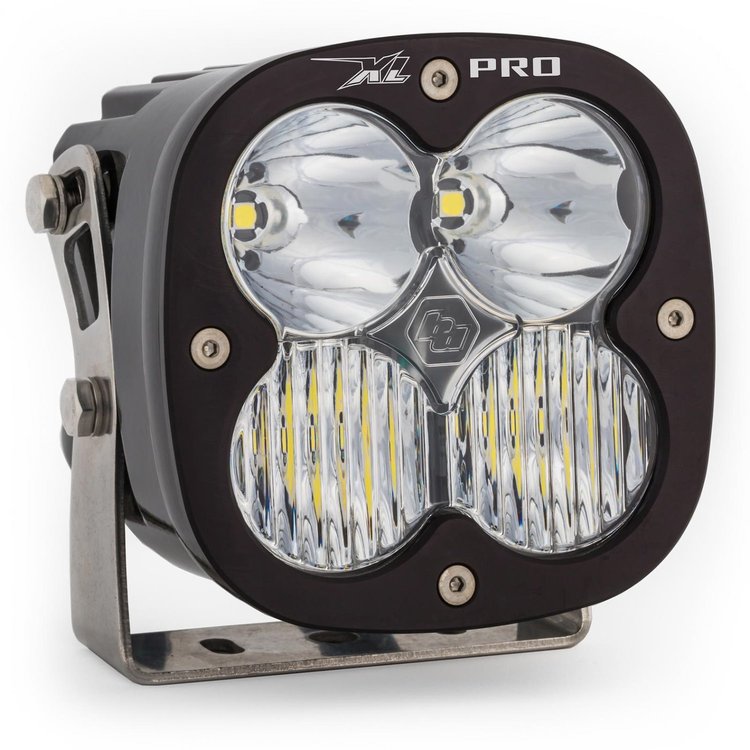

XL Pro LED Auxiliary Light Pod [Universal]
InfoVehicle Info Needed
BAJA DESIGNSPART NUMBER: 803-500003

XL Pro LED Auxiliary Light Pod [Universal]

$34595
9 left in stock
ShippingShips on Sep 08, 2026
Lowest PriceLowest Price Guarantee

Driving/Combo
XL Pro LED Auxiliary Light Pod
  • Universal
  • Driving/Combo
  • Clear

    Baja Designs 500003 Features:

    With a 4,900 lumen count and power draw of 40 watts, the XL Pro is the only single housing LED auxiliary light on the market that has the distance of an 8 inch HID with the smooth spread of an LED. The XL Pro LED light utilizes our trademarked High Speed Spot reflectors providing for a longer beam pattern, and offers a 20 percent dimming feature. Perfect for enthusiasts that need a vast amount of light and are looking for something other than a light bar.

    • uService -Replaceable Lenses And Optics
    • ClearView -All The Light, Right Where You Need It
    • MoistureBlock -Waterproof, Rain Proof, Submersible
    • CopperDrive -Only LED Driven At 100 Percent
    • 5000K Daylight -Less Driver Fatigue, Natural Color
    • Amperage Rating (A): 2.9
    • Average Rated Life (hr.): 49,930
    • Beam Pattern: Driving/Combo
    • Bezel Material: Billet Machined Aluminum
    • Brightness (Lumens): 4,900
    • Depth (in.): 3.65
    • Effective Lighting Score (ELS): 3700 / (5.9, 88 degree) / 432
    • Height (in.): 4.43
    • Housing Color: Black
    • Housing Material: Hard Anodized and Powder Coated Cast Aluminum
    • Length (in.): 4.43
    • Lens Color: Clear
    • Lens Material: Hardcoated Polycarbonate
    • Light Quantity: 1
    • Lighting Modes: High Beam/Dimming Feature (20%)
    • Lighting Quantity: 4
    • Lighting Technology: Cree XP-L LED
    • Lighting Type: Forward Projecting
    • Mounting Hardware Included: Yes
    • Mounting Hardware Material: Stainless Steel
    • Overvoltage Protection: Built-In
    • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
    • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
    • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
    • Wattage (W): 40
    • Wiring Harness Included: No
    • Forward Projecting Light Pods

      The Baja Designs XL Pro LED Auxiliary Light Pods are a powerful and versatile lighting solution designed for off-road enthusiasts who demand top-notch performance. These light pods feature a high-output LED design that delivers an impressive 4,600 lumens of light output while drawing only 40 watts of power. The XL Pro is also highly durable, featuring a rugged aluminum housing and a hard-coated polycarbonate lens that resists scratches and impacts. These light pods are available in a variety of beam patterns, including spot, driving, and wide cornering, allowing you to customize your lighting setup to suit your specific needs.

    Part TypeAuxiliary Light
    Product LineBaja Designs XL Pro LED Auxiliary Light Pods
    BrandBAJA DESIGNS
    Package Height8.0
    Package Width10.0
    Package Length10.0
    Weight5.0 PG
    Vendor Part Number500003
    Package Qty1
    Package TypeEA
