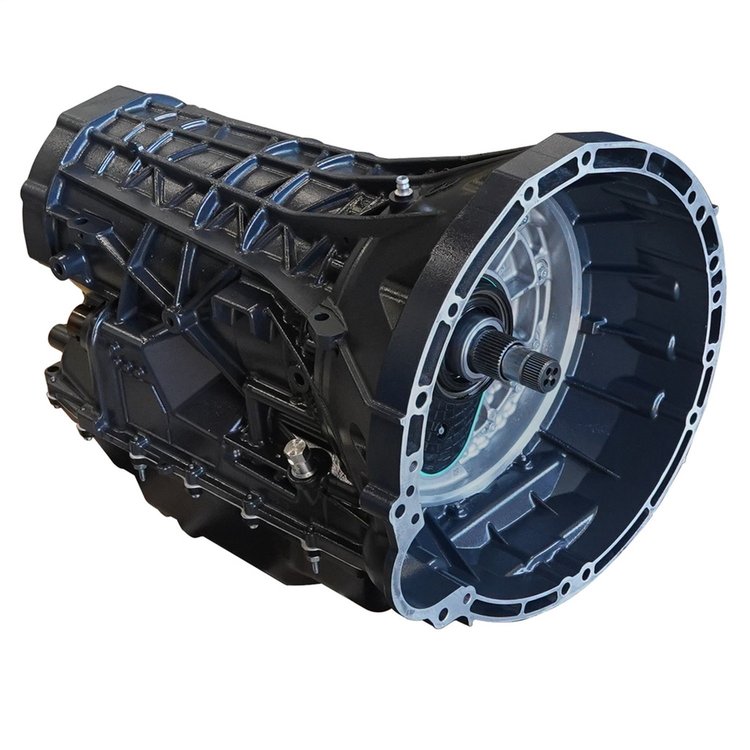

BD Diesel 1064624 RoadMaster 10R80 Transmission Features:

• Modified valve body to increase line pressure by 30 percent for increased clutch holding
• Deep-Sump transmission oil pan holds an extra 2 quarts of fluid
• Increased fluid capacity helps regulate temperature and extend fluid life
• Revised CDF drum with retaining feature to prevent sleeve failure common on OEM units
• Eliminates long shift delays or flares due to the leaking CDF drum
• New OEM clutches and steels
• Smooth and quick shifts
• Easy to flush transmission fluid with drain plug, and can attach a temperature sensor if desired

BD Diesel 1064624 RoadMaster 10R80 Transmission Notes:

• Requires 15.1 quarts of Ford Motorcraft Mercon ULV Automatic Transmission Fluid XT-12-QULV (sold separately)
• Does not fit Raptor models
• Ford scanner or equivalent is required to update the TCM with the new solenoid code and initiate a relearn
• Replaces Ford OEM part numbers JL3Z7000F, JL3Z7000ERM
