Aluminum Radiator Module System 1968-77 Chevelle with LS2/LS3/LS7

Vehicle Info Needed

Aluminum Radiator Module System 1968-77 Chevelle with LS2/LS3/LS7

Name: Aluminum Radiator Module System 1968-77 Chevelle with LS2/LS3/LS7
Brand: BE COOL RADIATORS
SKU: 134-82208
Price: 1499.99 USD
Availability: InStock

^$1,499⁹⁹

Ships on 09/16/2026

Lowest Price Guarantee

Automatic Transmission Applications

Natural Finish

1968-77 Chevelle with LS2/LS3/LS7
Passenger Side Upper, Passenger Side Lower Hose
Rated up to 700 HP
33''W x 19''H
Crossflow
Automatic Trans
Natural Finish

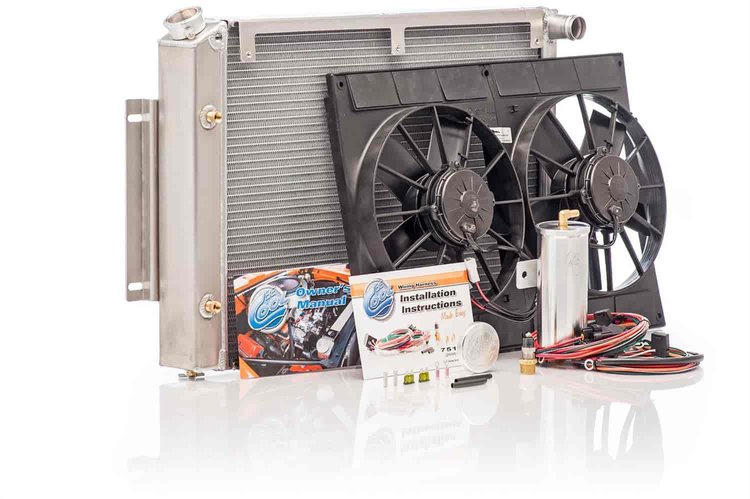

Radiator Module System Includes:
Direct-Fit Dual 1' Core Radiator
Qualifier Euro-Black Electric Fans
Wiring Harness with Temperature Control Sending Unit & 40 Amp Relays
Stainless Steel and/or Aluminum Electric Fan Mounting Brackets with Hardware
Diamond-Cut Aluminum Coolant Recovery Tank

Billet Aluminum Round-Style Radiator Cap

Inlet Location & Size:	Passenger Side / 1-3/8'
Outlet Location & Size:	Passenger Side / 1-1/2'
Core Type:	Dual
Radiator Height:	18-1/2'
Radiator Width:	33'
Radiator Thickness:	3'
Radiator Core Height:	N/A
Radiator Core Width:	N/A
Radiator Core Thickness:	2'
Notes: Includes built-in heavy duty transmission oil cooler Modification to upper and lower hoses (and transmission lines, if equipped) required for crossflow upgrade. With passenger side water pump outlet

Part TypeCooling Fan Kit

BrandBE COOL RADIATORS

Package Height13.0

Package Width27.0

Package Length40.0

Weight60.0 PG

Part CategoryPerformance Parts

Overall Thickness7.25 in (184.2 mm)

Overall Height18.5 in (469.9 mm)

Radiator Cap IncludedNo

Shroud MaterialSteel

Inlet LocationUpper passenger side

Inlet Size (In.)1 3/8

Core Width27.5 in (698.5 mm)

Row Quantity2

Overall Width33.25 in (844.6 mm)

Tube Size1 in (25.4 mm)

Radiator FinishNatural

Transmission CoolerYes

Maximum Fan Cfm3,560 cfm

Shroud ColorBlack

Radiator StyleCrossflow

Coating/FinishNatural

Blade MaterialPlastic

Outlet Size1.5 in (38.1 mm)

Fan QuantityDual

Radiator MaterialAluminum

QuantitySold as a kit

MaterialAluminum

Core Height18.5 in (469.9 mm)

Core Thickness2 in (50.8 mm)

Fan Diameter13 in (330.2 mm)

Blade ColorBlack

Outlet LocationLower passenger side

Fan IncludedYes

Vendor Part Number82208

Package Qty1

Package TypeEA
