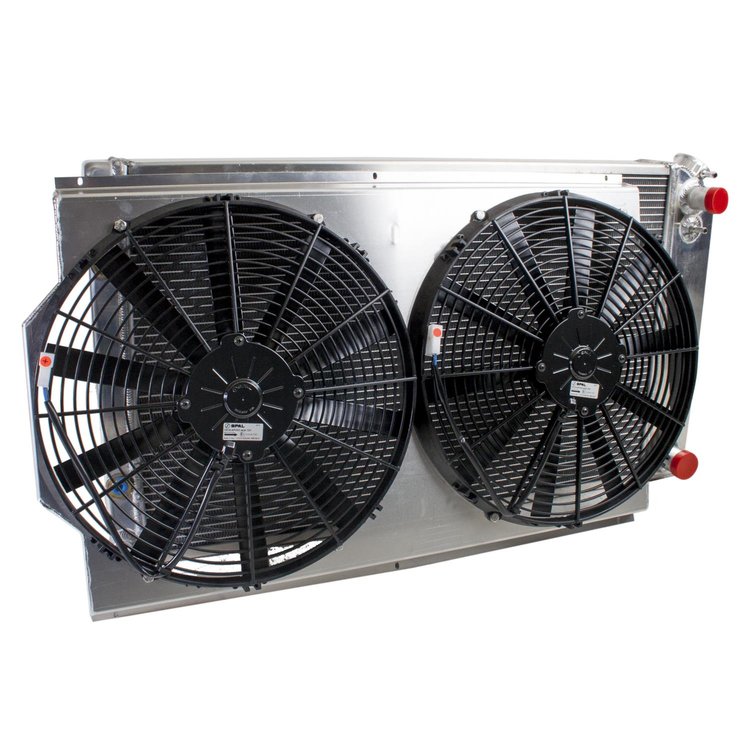

PerformanceFit Radiator ComboUnit for LS Swap GM 1968-1977 A Body, 1978-1988 G Body, 1970-1981 F Body
InfoVehicle Info Needed
GRIFFIN RADIATORSPART NUMBER: 475-CU-70008-LS

PerformanceFit Radiator ComboUnit for LS Swap GM 1968-1977 A Body, 1978-1988 G Body, 1970-1981 F Body

$99700
2 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

Automatic Transmission Applications
ComboUnit
PerformanceFit Radiator ComboUnit
  • LS Swap
  • 1968-1977 Chevelle
  • 1968-1974 GTO
  • 1970-1981 Camaro/Firebird
  • 1970-1988 Monte Carlo
  • Core Size: 28" x 19"
  • Auto Transmission
    Includes
  • Shroud, Fans, Cap, and Wiring

    Notes:

    • Overall Size (in): 33.25x18.62x6.42
    • Core Size (in): 28x19x2.68
    • Row Quantity: 2
    • Tube Size: 1.25(in)
    • Radiator Material: Lightweight Aluminum
    • Transmission Cooler: Yes
    • Cooler Fittings: 1/4" NPT
    • Inlet Location: Top Right
    • Outlet Location: Bottom Right
    • Inlet Size: 1.25(in)
    • Outlet Size: 1.5(in)
    • ComboUnit Includes: Shroud, Fan(s), Wiring, Temp Sensor, and Radiator Cap
    • Fan Size: Dual 16" 2596cfm
    • High Performance Cooling

      Looking for a lightweight aluminum radiator without the hassle of making brackets to fit your application? Griffin PerformanceFit radiators may just be the item for you! Featuring an exclusive MegaCool core that features oversized 1.25 inch wide tubes that offer an astounding 25 percent increase in cooling power. The added tube size is capable of cooling moderate to heavily modified engines. Griffin also offers an option for LS swap vehicles that will make an LS transplant even easier. Carefully designed to work with various makes and models, in some cases the factory fan shroud will need modifications for correct fitment. Available as a ComboUnit package which includes a factory mounted high performance electric fan with a custom fit aluminum shroud.

      Show More

      Strength and Reliability

      The key to strength, durability, and performance comes from vacuum brazing. Vacuum brazing is a manufacturing process used to join all the components once assembled that requires the use of magnesium. Magnesium is found in aluminum alloys to give structural components strength when high strength is required. Griffin Thermal Products utilizes this process to offer one of the toughest aluminum radiators on the market today. By producing the tubes, fins, headers, side bands, tanks, and mounting brackets in house, every piece is performance matched for optimum cooling with unsurpassed quality.



    Part TypeCooling Fan Kit
    Product LineGriffin Radiator PerformanceFit Chevy/GM Car Aluminum Radiators
    BrandGRIFFIN RADIATORS
    Package Height10.0
    Package Width25.25
    Package Length39.5
    Weight30.0 PG
    Part CategoryPerformance Parts
    Overall Thickness6.42 in,
    Overall Height18.625 in (473.1 mm)
    Outlet Size1.75 in (44.5 mm)
    Fan QuantityDual
    Wiring IncludedYes
    Radiator Cap IncludedYes
    Radiator MaterialAluminum
    Shroud MaterialAluminum
    QuantitySold as a Combo
    Inlet LocationUpper driver side
    Inlet Size (In.)1.5
    Core Height19 in (482.6 mm)
    Core Thickness2.6875 in (68.26 mm)
    Fan Diameter16 in (406.4 mm)
    Core Width28 in (711.2 mm)
    Outlet LocationLower passenger side
    Overall Width33.25 in (844.6 mm)
    Tube Size1.25 in (31.8 mm)
    Fan IncludedYes
    Part FitmentSemi Universal
    Maximum Fan Cfm2148
    Radiator StyleCrossflow
    Vendor Part NumberCU-70008-LS
    Package Qty1
    Package TypeEA
