Vehicle Info NeededBELLTECHPART NUMBER: 146-25005

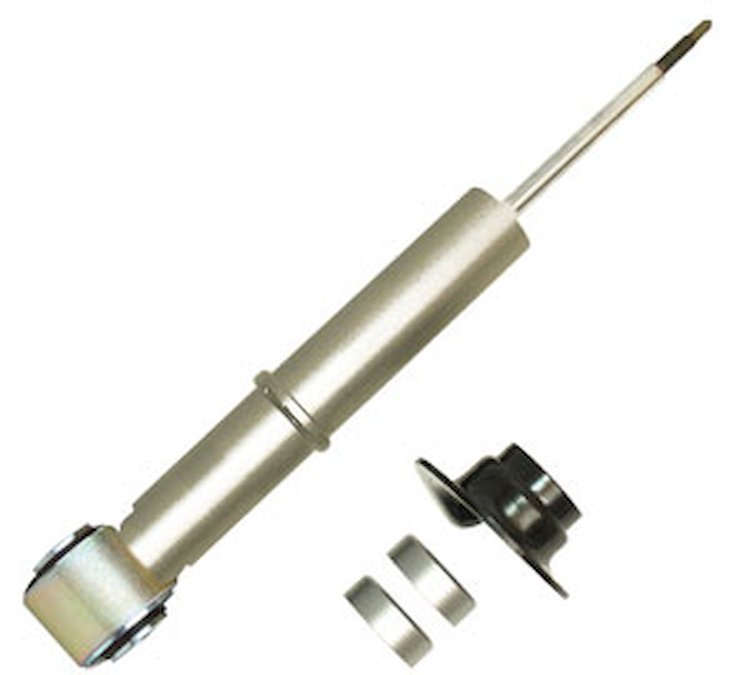

Lift/Lowering Strut 2004-2012 Chevy Colorado/GMC Canyon
$14200
Ships on 09/08/2026
Lowest Price GuaranteeGM
Lift/Lowering Strut2004-2012 Colorado/Canyon Ride Height: -2'' to 0''
Belltech 146-25005 Features:
Belltech Street Performance Lowering Front Struts are designed as a performance replacement for today's Strut equipped Trucks and SUV's. In true Belltech style, the Street Performance Lowering Struts not only provide the performance & safety that you can only get from Belltech but offers the installer the choice on the amount of drop desired from one-part number. Thanks to our patented ring and perch system, you now have the ability to choose from oem stock height to as much as 3- Ride Height adjustable
- Independent performance tuned 35mm compression and rebound valves
- 18mm piston rods
- 50mm shock bodies
- Progressive rate Polymer bumpstops
- Application specific (Non universal)
Part TypeStrut
BrandBELLTECH
Package Height3.0
Package Width3.6
Package Length19.7
Weight5.19 PG
Part CategoryPerformance Parts
Boot IncludedNo
Gas ChargedYes
Bushing ColorBlack
Body TypeVarious - Application Specific
Bushing MaterialRubber
QuantitySold individually
Lower MountEyelet
AdjustableYes
Upper MountStud
Body Diameter2.17 in (55.118 mm)
Part FitmentDirect Fit
Internal DesignTwin-tube
Vendor Part Number25005
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
