Vehicle Info NeededBILSTEINPART NUMBER: 132-24-065283

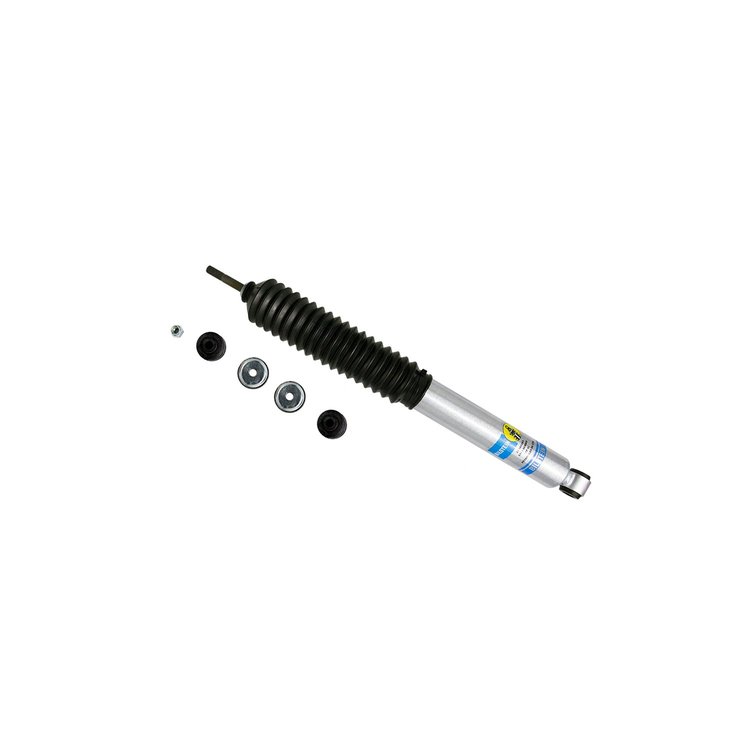

24-065283 B8 5100 Suspension Shock Absorber Fits Select Ford
$12300
More than 10 available
Ships Today
Lowest Price Guarantee- B8 5100 - Shock Absorber
- Ford Bronco 1977-1966
- Bronco 1996-1980
- F-150 1996-1980
- F-250 1996-1980
- F-250 HD 1997
- F-250 Super Duty 2016-1999
- F-350 1997-1980
- F-350 Super Duty 2016-1999
- 46mm Monotube Shock Absorber
- Position: Front
24-065283 Shock Absorber Features:
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 21.52
- Collapsed Length (IN): 13.27
- Collapsed Length (MM): 337.0
- Extended Length (MM): 546.5
Shocks Designed for Lifted Vehicles
Bilstein B8 5100 Shock Absorbers are ideal for applications demanding stronger dampening from adding lift kits or larger wheels and tires. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.
Part TypeShock Absorber
Product LineBilstein B8 5100 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.63 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)13.27 in.
Upper Mount TypeStem
SeriesB8 5100
Travel Length8.25 in.
Extended Length21.52 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-065283
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
