Vehicle Info NeededBILSTEINPART NUMBER: 132-24-185493

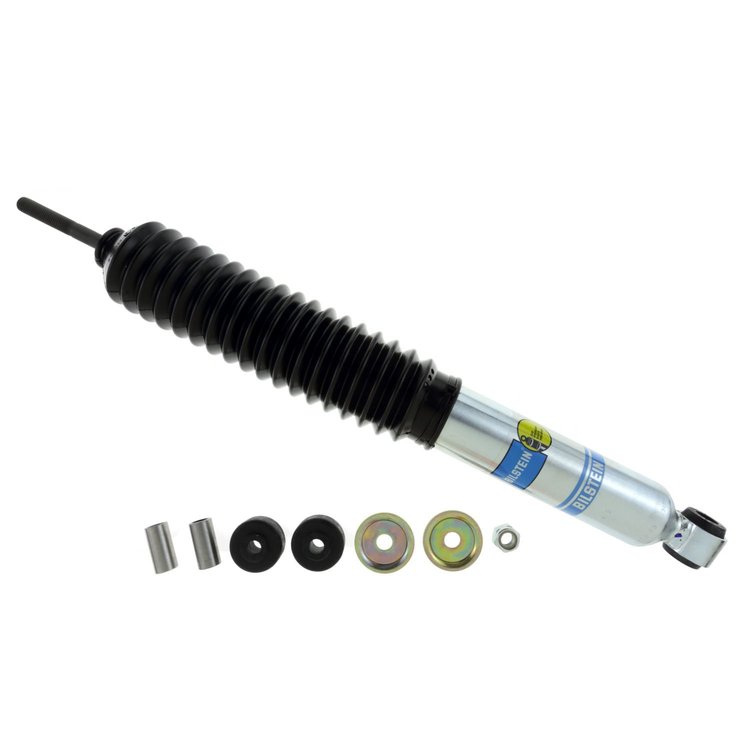

24-185493 B8 5100 Suspension Shock Absorber; 1966-1977 Ford Bronco, 1984-1990 Bronco II, 1991-1994 Explorer, 1983-1997 Ranger
$12300
Ships on Sep 15, 2026
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford Bronco 1977-1966
- Bronco II 1990-1984
- Explorer 1994-1991
- Ranger 1997-1983
- Position: Front
- Boot Included: Black Bellows
- Internal Design: Monotube
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Eye 16mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 18.98
- Collapsed Length (IN): 12.17
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 309.0
- Extended Length (MM): 482.2
24-185493 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.45 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 16mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)12.17 in.
Upper Mount TypeStem
SeriesB8 5100
Travel Length6.81 in.
Extended Length18.98 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-185493
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
