Product Discontinued
BILSTEINPART NUMBER: 132-24-185509

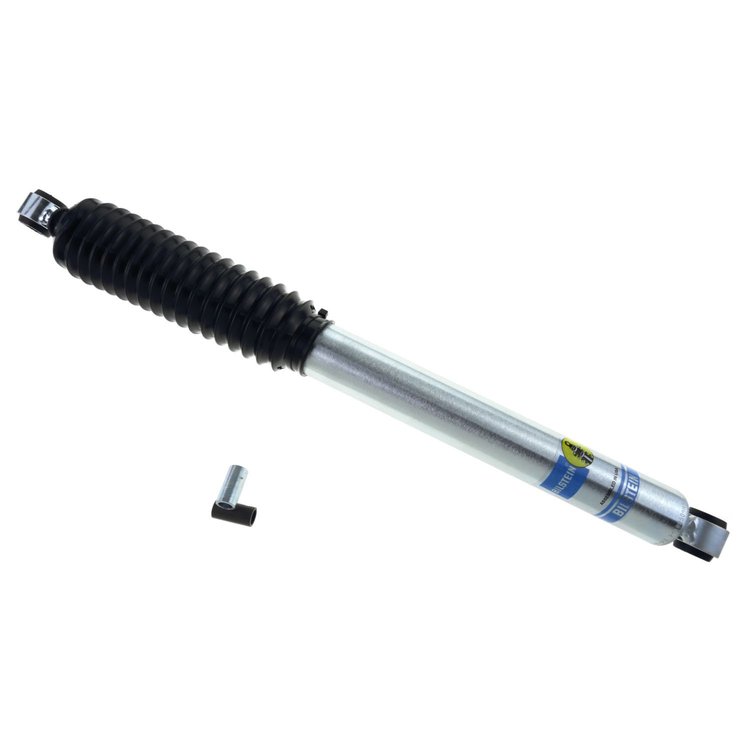

24-185509 B8 5100 Suspension Shock Absorber Fits Select Ford/Mazda
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford Bronco II 1990-1984
- Ranger 2011-1983
- Mazda B2300 2009-2001
- B2500 2001-1998
- B3000 2001-1998
- B3000 2007-2003
- B4000 2000-1998
- Position: Rear
- Reservoir: No
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 16mm
- Lower Mount Type: Eye 16mm
- Spring Seat Included: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 26.16
- Collapsed Length (IN): 16.14
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 410.0
- Extended Length (MM): 664.5
24-185509 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.09 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 16mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.14 in.
Upper Mount TypeEye 16mm
SeriesB8 5100
Travel Length10.02 in.
Extended Length26.16 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-185509
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
