Vehicle Info NeededBILSTEINPART NUMBER: 132-24-185615

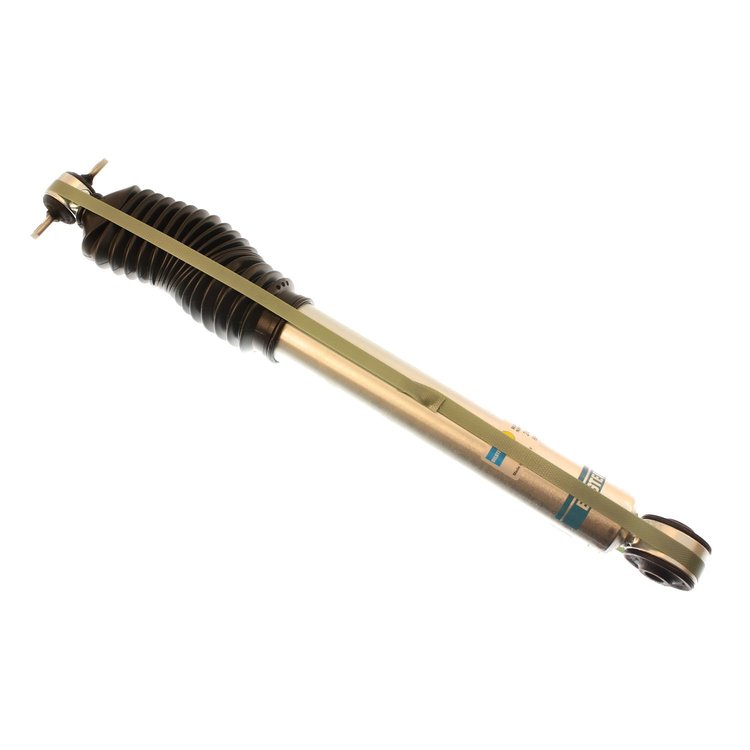

24-185615 B8 5100 Suspension Shock Absorber; 1995-1999 Chevrolet Tahoe, 1995-1999 GMC Yukon, 2006-2010 Hummer H3, 2009-2010 H3T
$16300
Ships on Sep 15, 2026
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Chevrolet Tahoe 1999-1995
- GMC Yukon 1999-1995
- Hummer H3 2010-2006
- H3T 2010-2009
- Position: Rear
- Boot Included: Black Bellows
- Internal Design: Monotube
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Finish: Zinc Plated
- Upper Mount Type: Bar Pin
- Lower Mount Type: Eye 14.1mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 26.20
- Collapsed Length (IN): 16.18
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 411.0
- Extended Length (MM): 665.5
24-185615 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight5.6 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.1mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.18 in.
Upper Mount TypeBar Pin
SeriesB8 5100
Travel Length10.02 in.
Extended Length26.20 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-185615
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
