Vehicle Info NeededBILSTEINPART NUMBER: 132-24-185745

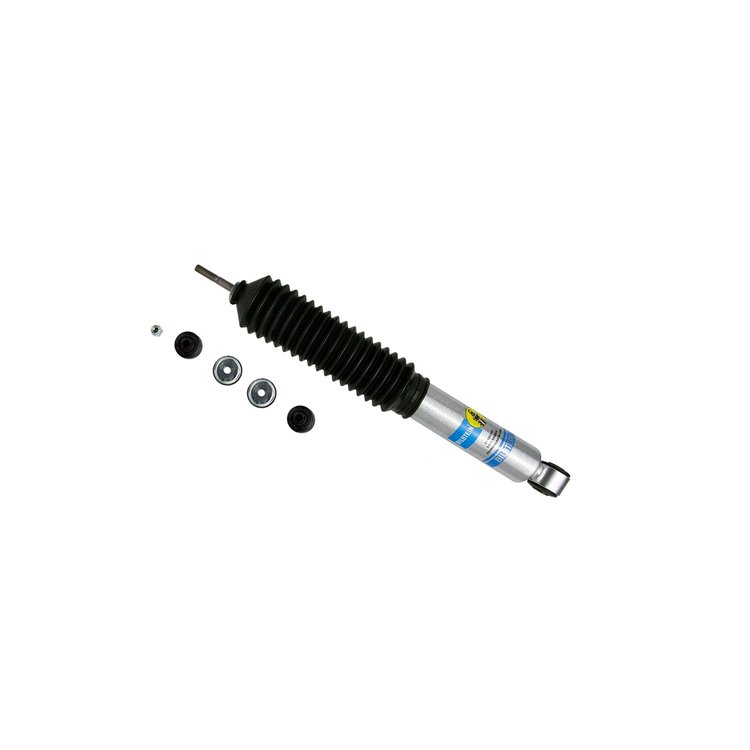

24-185745 B8 5100 Suspension Shock Absorber; 1986-1995 Toyota 4Runner, 1986-1995 Pickup
$12300
Ships on Sep 15, 2026
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Toyota 4Runner 1995-1986
- Pickup 1995-1986
- Position: Front
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Upper Mount Type: Stem
- Lower Mount Type: Eye 16mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 17.95
- Collapsed Length (IN): 11.67
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 296.5
- Extended Length (MM): 456.0
24-185745 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.3 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 16mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)11.67 in.
Upper Mount TypeStem
SeriesB8 5100
Travel Length6.28 in.
Extended Length17.95 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-185745
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
