Vehicle Info NeededBILSTEINPART NUMBER: 132-24-186704

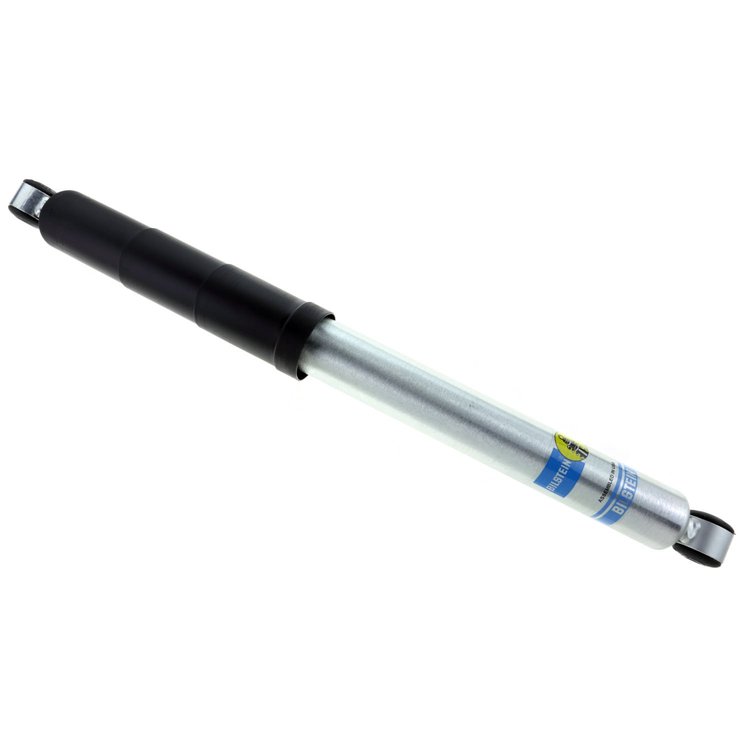

24-186704 B8 5100 Suspension Shock Absorber; 2004-2008 Ford F-150, 2006-2008 Lincoln Mark LT
$12300
Ships on Sep 15, 2026
Lowest Price Guarantee- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford F-150 2008-2004
- Lincoln Mark LT 2008-2006
- Position: Rear
- Boot Included: Black Straight
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Upper Mount Type: Eye 12mm
- Lower Mount Type: Eye 12mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 24.94
- Collapsed Length (IN): 15.31
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 389.0
- Extended Length (MM): 633.5
24-186704 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.85 PG
Part CategoryPerformance Parts
Boot IncludedBlack Straight
Lower Mount TypeEye 12mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.31 in.
Upper Mount TypeEye 12mm
SeriesB8 5100
Travel Length9.63 in.
Extended Length24.94 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-186704
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
