Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

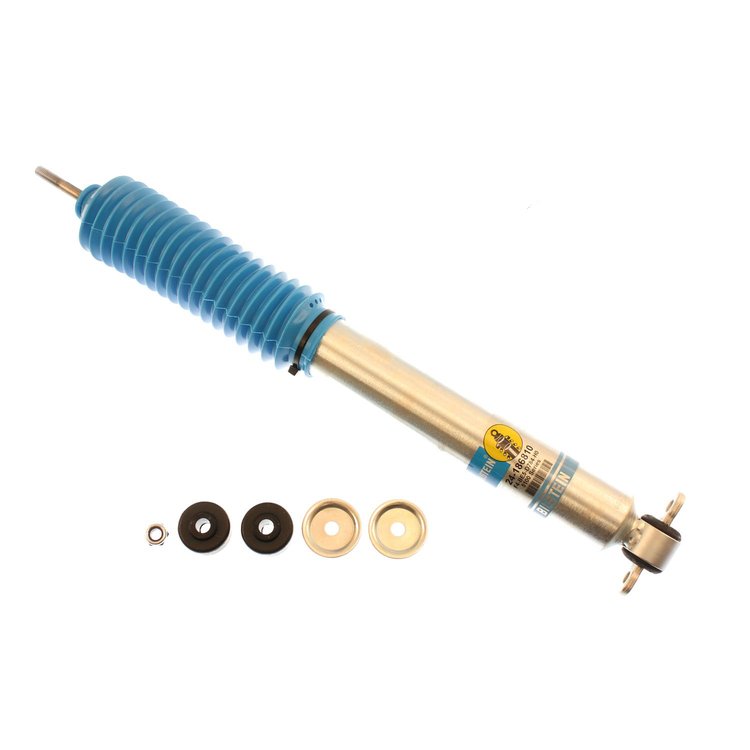

- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Blue Straight
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Bar Pin
- Reservoir: No
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Spring Seat Included: No
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 21.18
- Collapsed Length (IN): 13.06
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 331.8
- Extended Length (MM): 538.0
24-186810 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.07 PG
Part CategoryPerformance Parts
SeriesB8 5100
Boot IncludedBlue Straight
Lower Mount TypeBar Pin
Travel Length8.12 in.
Shaft Diameter14mm
Piston Diameter46mm
Extended Length21.18 in.
Collapsed Length (In)13.06 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeStem
Vendor Part NumberB524-186810
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
