Made in USA

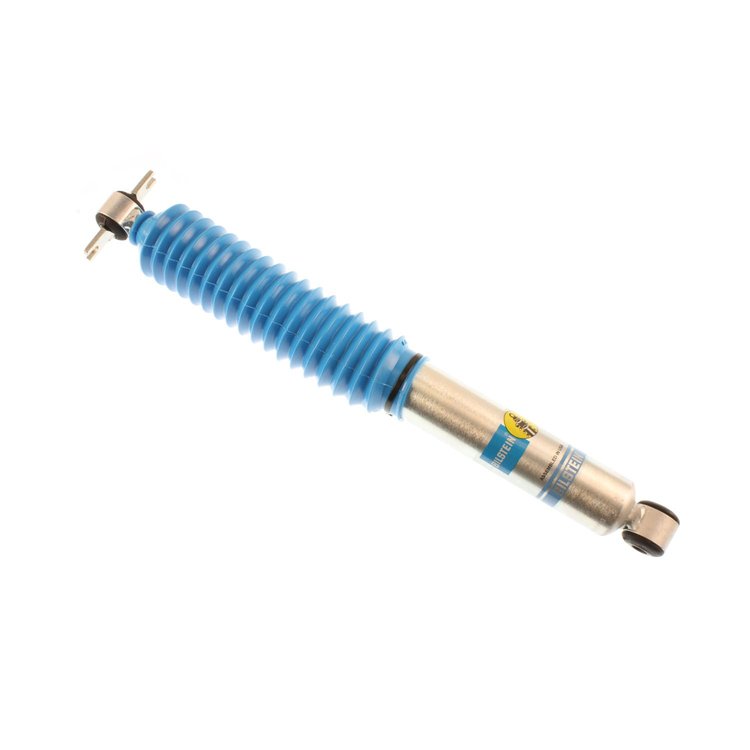

24-186827 B8 5100 Shock Absorber
Product Discontinued
BILSTEINPART NUMBER: 132-24-186827

24-186827 B8 5100 Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    B8 5100 - Shock Absorber
  • 46mm Monotube Shock Absorber
  • Boot Included: Blue Straight
  • Internal Design: Monotube
  • Finish: Zinc Plated
  • Upper Mount Type: Bar Pin
  • Lower Mount Type: Eye 12.7mm


  • 24-186827 Shock Absorber Features:

  • Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
  • Spring Seat Included: No
  • Reservoir: No
  • Body Design: Smooth Body (Non-Coilover)
  • Extended Length (IN): 20.08
  • Collapsed Length (IN): 12.81
  • Body Diameter (ID): 46mm
  • Collapsed Length (MM): 325.3
  • Extended Length (MM): 510.0

    Shocks Designed for Lifted Vehicles

    Bilstein B8 5100 Shock Absorbers are ideal for applications demanding stronger dampening from adding lift kits or larger wheels and tires. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.

Part TypeShock Absorber
Product LineBilstein B8 5100 Shock Absorbers
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight4.54 PG
Part CategoryPerformance Parts
SeriesB8 5100
Boot IncludedBlue Straight
Lower Mount TypeEye 12.7mm
Travel Length7.27 in.
Shaft Diameter14mm
Piston Diameter46mm
Extended Length20.08 in.
Collapsed Length (In)12.81 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeBar Pin
Vendor Part NumberB524-186827
Package Qty1
Package TypeEA
