Product Discontinued
BILSTEINPART NUMBER: 132-24-186988

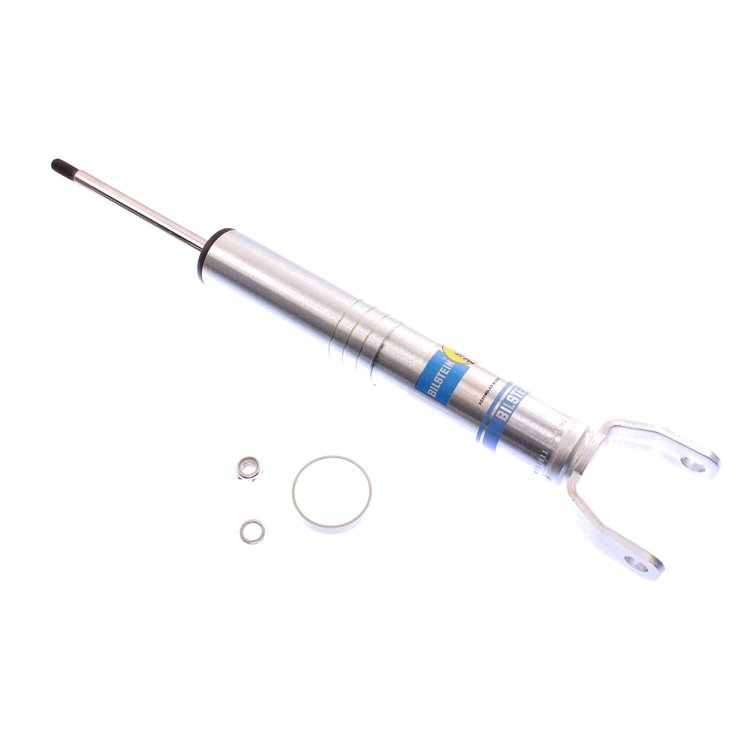

24-186988 B8 5100 (Ride Height Adjustable) Shock Absorber; 2006-2008 Dodge Ram 1500; Front
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Dodge Ram 1500 2008-2006
- Position: Front
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Upper Mount Type: Stem
- Lower Mount Type: Clevis
- Spring Seat Included: No - Reuse OEM
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 21.26
- Collapsed Length (IN): 15.18
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 385.5
- Extended Length (MM): 540.0
24-186988 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight4.63 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeClevis
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.18 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Travel Length6.08 in.
Extended Length21.26 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-186988
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
