Product Discontinued
BILSTEINPART NUMBER: 132-24-187237

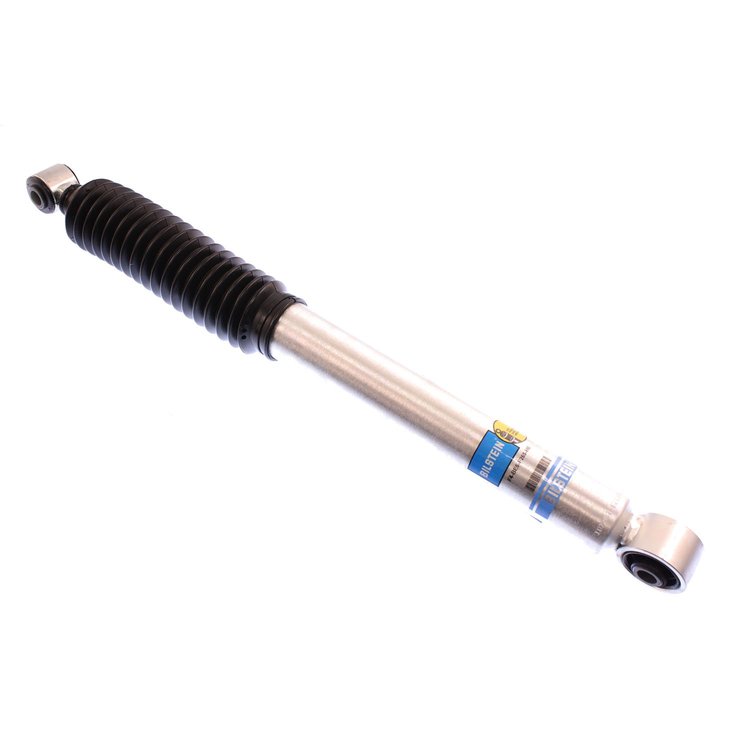

24-187237 B8 5100 Suspension Shock Absorber Fits Select Chevrolet/GMC
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Chevrolet Avalanche 2013-2007
- Avalanche 1500 2006-2002
- Suburban 1500 2014-2000
- Tahoe 2014-2000
- GMC Yukon 2014-2000
- Yukon XL 1500 2014-2000
- Position: Rear
24-187237 Shock Absorber Features:
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Eye 14.1mm
- Lower Mount Type: Eye 14.1mm
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Smooth Body (Non-Coilover)
- Extended Length (IN): 24.33
- Collapsed Length (IN): 15.55
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 395.0
- Extended Length (MM): 618.0
Shocks Designed for Lifted Vehicles
Bilstein B8 5100 Shock Absorbers are ideal for applications demanding stronger dampening from adding lift kits or larger wheels and tires. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.
Part TypeShock Absorber
Product LineBilstein B8 5100 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.63 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.1mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.55 in.
Upper Mount TypeEye 14.1mm
SeriesB8 5100
Travel Length8.78 in.
Extended Length24.33 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-187237
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
