Product Discontinued
BILSTEINPART NUMBER: 132-24-187466

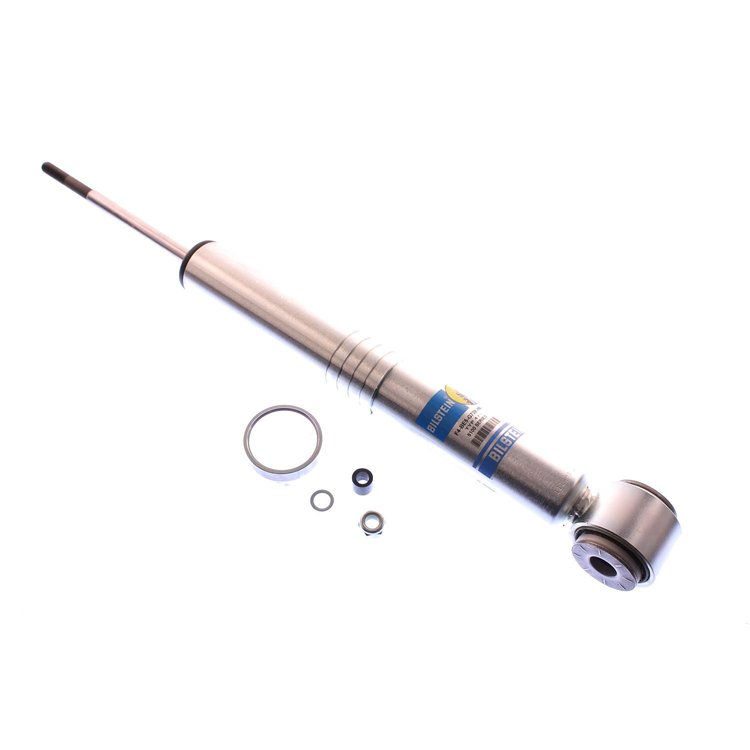

24-187466 B8 5100 (Ride Height Adjustable) Shock Absorber; 2009-2013 Ford F-150; Front
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Ford F-150 2013-2009
- Position: Front
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Upper Mount Type: Stem
- Lower Mount Type: Eye 20.3mm
- Spring Seat Included: No - Reuse OEM
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 21.91
- Collapsed Length (IN): 16.22
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 412.0
- Extended Length (MM): 556.5
24-187466 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight4.63 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeEye 20.3mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)16.22 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Travel Length5.69 in.
Extended Length21.91 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-187466
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
