Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

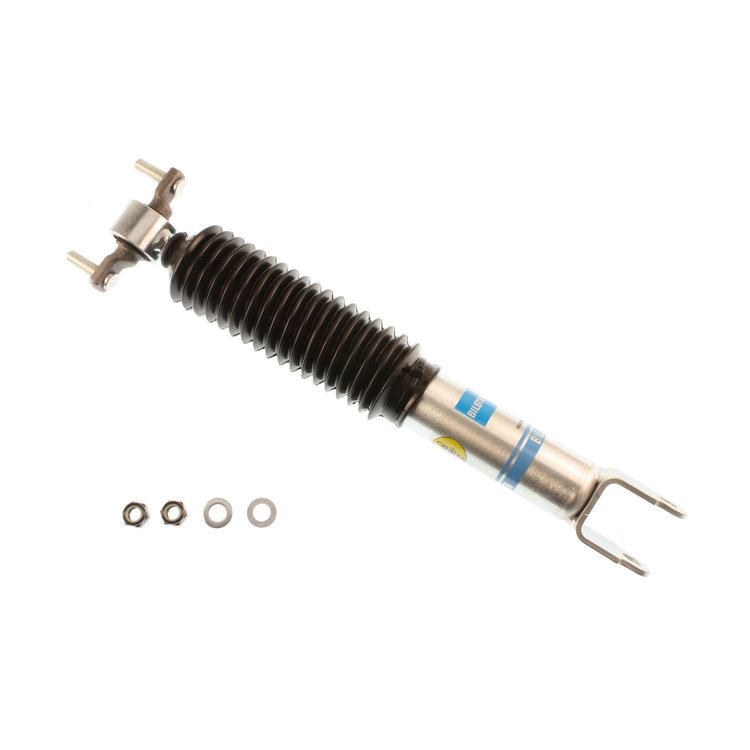

- B8 5100 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Bar Pin
- Lower Mount Type: Clevis
- Reservoir: No
- Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
- Spring Seat Included: No
- Body Design: 46mm ID Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 18.64
- Collapsed Length (IN): 14.06
- Collapsed Length (MM): 357.0
- Extended Length (MM): 473.5
24-196451 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height4.15
Package Width4.15
Package Length26.8
Weight5.4 PG
Part CategoryPerformance Parts
SeriesB8 5100
Boot IncludedBlack Bellows
Lower Mount TypeClevis
Travel Length4.58 in.
Shaft Diameter14mm
Extended Length18.64 in.
Collapsed Length (In)14.06 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeBar Pin
Vendor Part NumberB524-196451
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
