Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

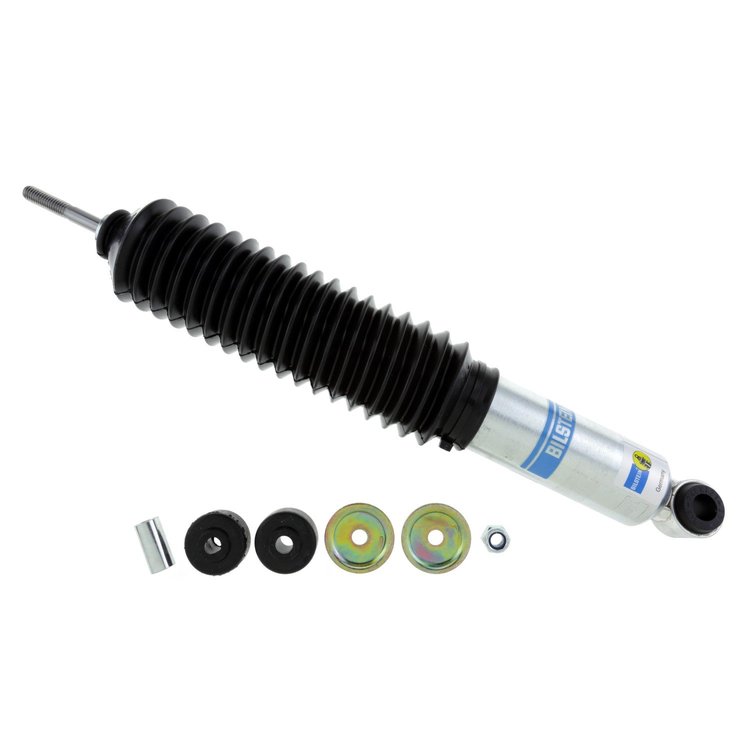

- B8 5125 - Shock Absorber
- 46mm Monotube Shock Absorber
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Eye 5/8in
- Reservoir: No
- Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
- Spring Seat Included: No
- Body Design: Smooth Body (Non-Coilover)
- Rebound @0.52M/S: 1760
- Extended Length (IN): 15.39
- Collapsed Length (IN): 10.45
- Collapsed Length (MM): 265.4
- Extended Length (MM): 390.9
- Compression @0.52M/S: 740
24-214681 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight4.0 PG
Part CategoryPerformance Parts
SeriesB8 5125
Boot IncludedBlack Bellows
Lower Mount TypeEye 5/8in
Travel Length4.94 in.
Shaft Diameter14mm
Extended Length15.39 in.
Collapsed Length (In)10.45 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeStem
Vendor Part NumberB524-214681
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
