Vehicle Info NeededBILSTEINPART NUMBER: 132-24-225793

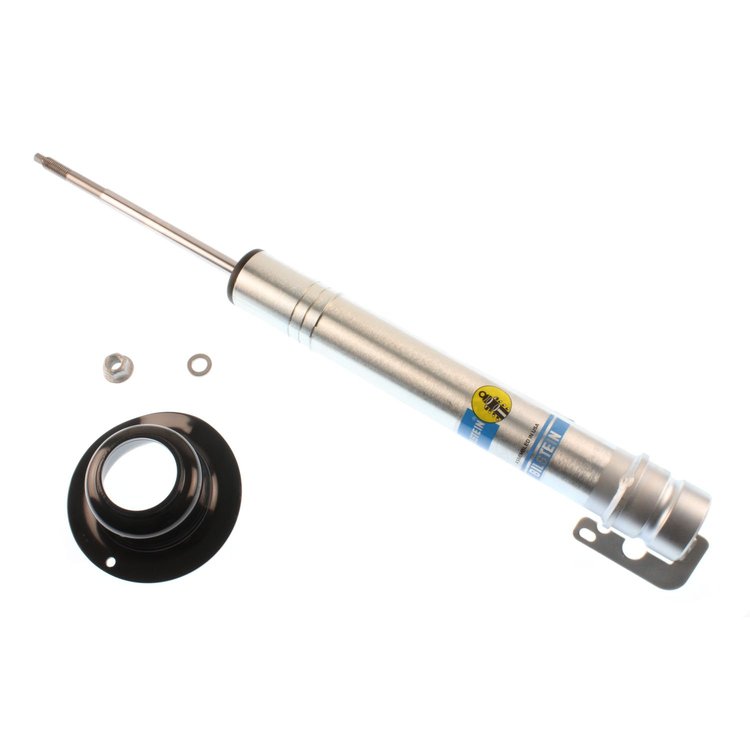

24-225793 B8 5100 (Ride Height Adjustable) Suspension Shock Absorber; 2005-2010 Jeep Grand Cherokee
$17600
More than 10 available
Ships on Sep 14, 2026
Lowest Price Guarantee- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Jeep Grand Cherokee 2010-2005
- Position: Front
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Upper Mount Type: Stem
- Lower Mount Type: Bracket
- Spring Seat Included: Yes
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 19.20
- Collapsed Length (IN): 13.35
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 339.0
- Extended Length (MM): 487.7
24-225793 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height6.1
Package Width6.1
Package Length26.8
Weight7.65 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeBracket
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)13.35 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Travel Length5.85 in.
Extended Length19.20 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-225793
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
