Vehicle Info NeededBILSTEINPART NUMBER: 132-24-232173

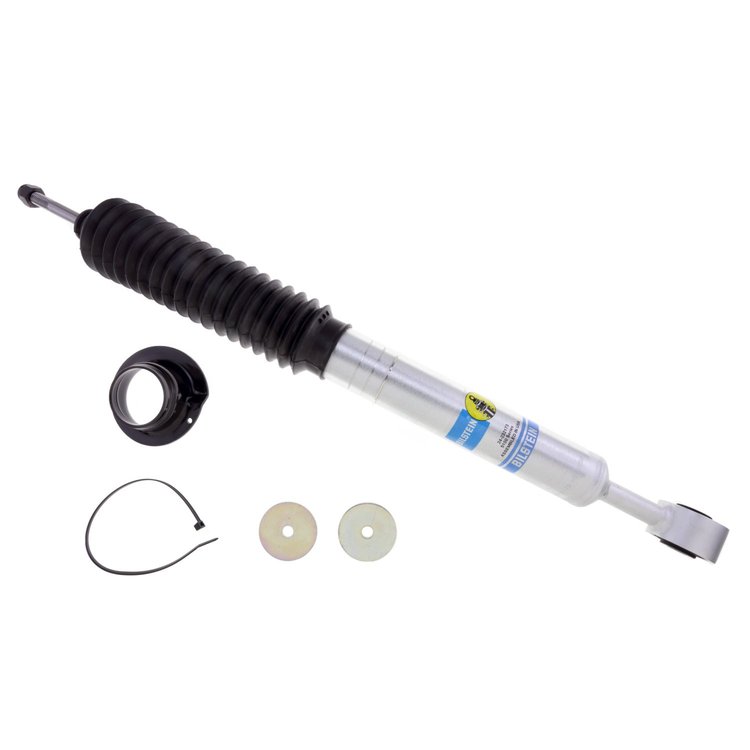

24-232173 B8 5100 (Ride Height Adjustable) Suspension Shock Absorber; 2007-2021 Toyota Tundra
$17600
Ships on Sep 15, 2026
Lowest Price Guarantee- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Toyota Tundra 2021-2007
- Position: Front
- Boot Included: Black Bellows
- Internal Design: Monotube
- Finish: Zinc Plated
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Upper Mount Type: Stem
- Lower Mount Type: Eye 16.4mm
- Spring Seat Included: Yes
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 24.21
- Collapsed Length (IN): 17.77
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 451.3
- Extended Length (MM): 615.0
24-232173 Shock Absorber Features:
Part TypeShock Absorber
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight6.94 PG
Part CategoryPerformance Parts
Boot IncludedBlack Bellows
Lower Mount TypeEye 16.4mm
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)17.77 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Travel Length6.44 in.
Extended Length24.35 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-232173
Package Qty1
Package TypeEA
