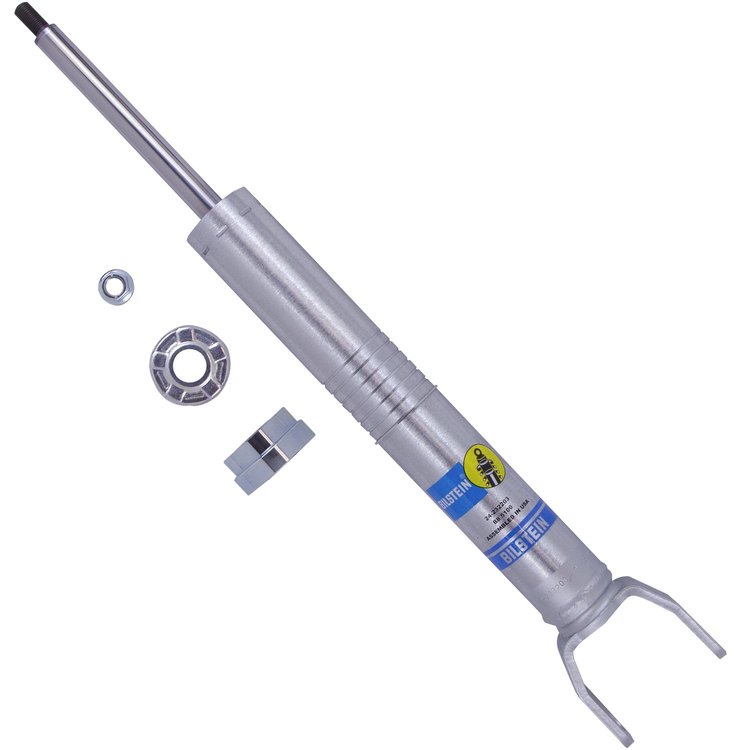

- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Position: Front
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Lower Mount Type: Clevis
- Spring Seat Included: No - Reuse OEM
- Reservoir: No
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 22.08
- Collapsed Length (IN): 16.00
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 406.5
- Extended Length (MM): 560.9
24-232203 Shock Absorber Features:
Level Your Vehicle with Bilstein Adjustable Shocks
Bilstein engineered the B8 5100 Adjustable Shock to serve as an alternative to coil spring spacers for vehicles with factory coil-over style suspension. They allow ride height adjustment to gain the perfect leveled stance and utilize the factory mounting points for direct fitment. Each shock features digressive disc valving that ensures handling responsiveness, ride quality, and fade-free operation.
Part TypeShock Absorber
Product LineBilstein B8 5100 Adjustable Shock Absorbers
BrandBILSTEIN
Package Height3.55
Package Width3.55
Package Length26.8
Weight6.0 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeClevis
Shaft Diameter18mm
Piston Diameter46mm
Collapsed Length (In)16.00 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Travel Length6.08 in.
Extended Length22.08 in.
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-232203
Package Qty1
Package TypeEA
