Product Discontinued
BILSTEINPART NUMBER: 132-24-238304

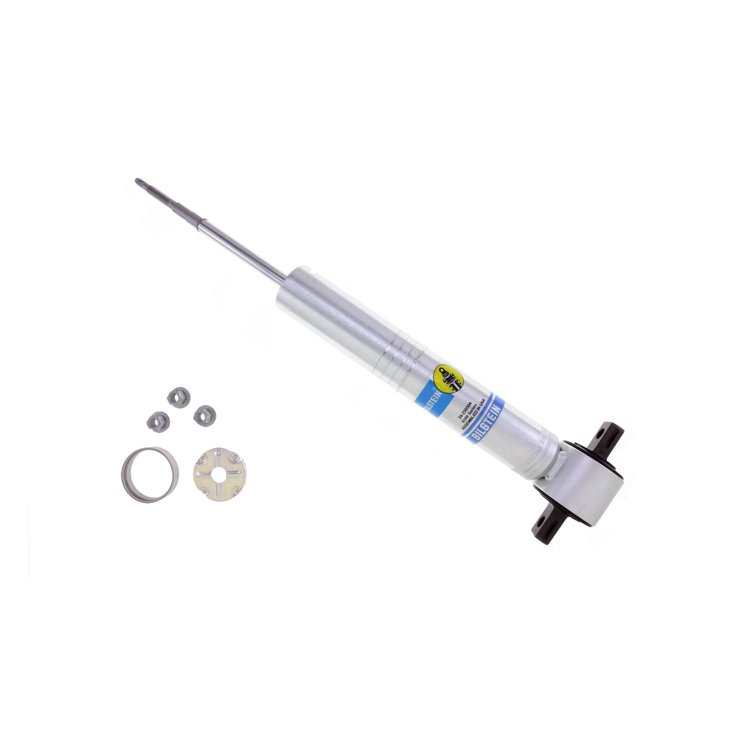

24-238304 B8 5100 (Ride Height Adjustable) Shock Absorber; 2014-2018 Chevrolet Silverado 1500; Front
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.
- B8 5100 (Ride Height Adjustable) - Shock Absorber
- 46mm Monotube Shock Absorber
- Chevrolet Silverado 1500 2018-2014
- Silverado 1500 LD 2019
- GMC Sierra 1500 2018-2014
- Sierra 1500 Limited 2019
- Position: Front
24-238304 Shock Absorber Features:
- Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
- Boot Included: No
- Internal Design: Monotube
- Finish: Zinc Plated
- Upper Mount Type: Stem
- Lower Mount Type: Bar Pin
- Spring Seat Included: No
- Reservoir: No
- Adjustable Damping: Non-Adjustable
- Body Design: Snap Ring Grooved Body (Coilover)
- Extended Length (IN): 18.86
- Collapsed Length (IN): 15.00
- Body Diameter (ID): 46mm
- Collapsed Length (MM): 381.0
- Extended Length (MM): 479.0
Level Your Vehicle with Bilstein Adjustable Shocks
Bilstein engineered the B8 5100 Adjustable Shock to serve as an alternative to coil spring spacers for vehicles with factory coil-over style suspension. They allow ride height adjustment to gain the perfect leveled stance and utilize the factory mounting points for direct fitment. Each shock features digressive disc valving that ensures handling responsiveness, ride quality, and fade-free operation.
Part TypeShock Absorber
Product LineBilstein B8 5100 Adjustable Shock Absorbers
BrandBILSTEIN
Package Height4.15
Package Width4.15
Package Length26.8
Weight6.9 PG
Part CategoryPerformance Parts
Boot IncludedNo
Lower Mount TypeBar Pin
Shaft Diameter14mm
Piston Diameter46mm
Collapsed Length (In)15.00 in.
Upper Mount TypeStem
SeriesB8 5100 (Ride Height Adjustable)
Travel Length3.86 in.
Extended Length18.86 in.
Adjustable DampingNon-Adjustable
Part FitmentDirect Fit
Internal DesignMonotube
FinishZinc Plated
Vendor Part NumberB524-238304
Package Qty1
Package TypeEA
