24-238540 B8 5100 Shock Absorber
Product Discontinued
BILSTEINPART NUMBER: 132-24-238540

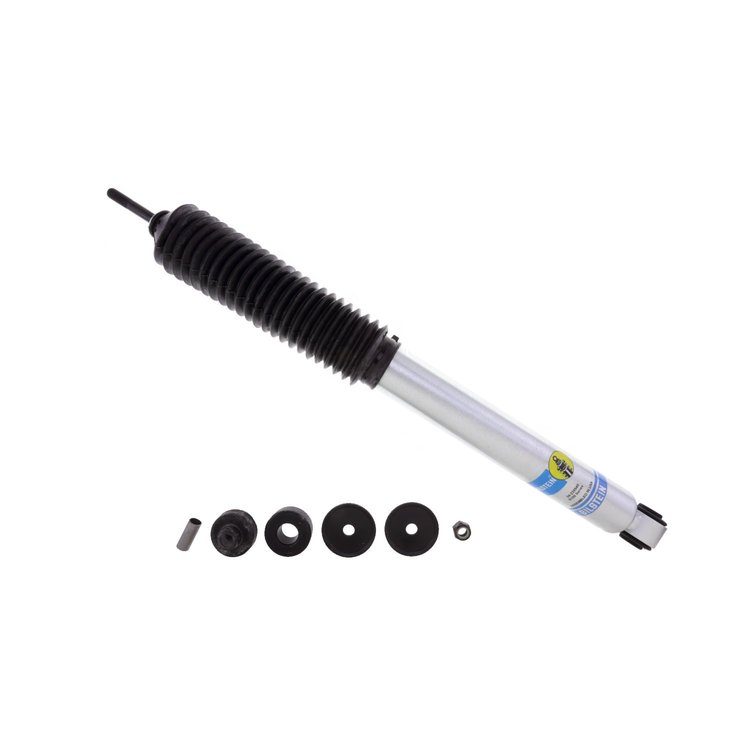

24-238540 B8 5100 Shock Absorber

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

    B8 5100 - Shock Absorber
  • 46mm Monotube Shock Absorber
  • Boot Included: Black Bellows
  • Internal Design: Monotube
  • Finish: Zinc Plated
  • Upper Mount Type: Stem
  • Lower Mount Type: Eye 14.1mm
  • Reservoir: No


  • 24-238540 Shock Absorber Features:

  • Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.
  • Spring Seat Included: No
  • Body Design: 46mm ID Smooth Body (Non-Coilover)
  • Extended Length (IN): 23.84
  • Collapsed Length (IN): 15.04
  • Collapsed Length (MM): 382.0
  • Extended Length (MM): 605.5

    Shocks Designed for Lifted Vehicles

    Bilstein B8 5100 Shock Absorbers are ideal for applications demanding stronger dampening from adding lift kits or larger wheels and tires. These shocks feature a mono-tube design with patented digressive valving to adapt to ever-changing road conditions and deliver increased handling responsiveness, ride quality, and fade-free operation. Available individually for the front and rear of most foreign and domestic applications.

Part TypeShock Absorber
Product LineBilstein B8 5100 Shock Absorbers
BrandBILSTEIN
Package Height2.95
Package Width2.95
Package Length26.8
Weight5.75 PG
Part CategoryPerformance Parts
SeriesB8 5100
Boot IncludedBlack Bellows
Lower Mount TypeEye 14.1mm
Travel Length8.80 in.
Shaft Diameter14mm
Extended Length23.84 in.
Collapsed Length (In)15.04 in.
Internal DesignMonotube
FinishZinc Plated
Upper Mount TypeStem
Vendor Part NumberB524-238540
Package Qty1
Package TypeEA
